Specification
Key Features
Data Rate
WiFi 6 (802.11ax) Tri-Band WiFi (AX6600)
- 2.4GHz AX: 2x2 (Tx/Rx) 1024/256-QAM
20/40MHz, up to 0.6Gbps
- 5GHz AX: 2x2 (Tx/Rx) 1024/256-QAM
20/40/80MHz, up to 1.2Gbps
- 5GHz AX: 4x4 (Tx/Rx) 1024/256-QAM
20/40/80/160MHz, up to 4.8Gbps
- Backwards compatible with
802.11a/b/g/n/ac WiFi
Antenna
Number of Antennas: 6
Antenna Placement: Internal
Frequency
2.4 GHz, 5 GHz
Wireless
Yes
Interface
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 5 Gb/s Ethernet (RJ45)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)
2 x 5 Gb/s USB Type-A
Network Standard
Wi-Fi 6 (802.11ax)
Encryption
Standards-based WiFi Security (802.11i,
128-bit AES encryption with PSK)
• Automatic firmware update delivers latest
security patches to the router
• Guest network access—Separate & secure
• VPN Support—Secure access to your home
network away from home
• NETGEAR Armor™—Advanced cyber
threat protection for your home network
and your connected devices††
• NETGEAR Smart Parental Controls™—
Easily manage your kids time online
across their connected devices§§

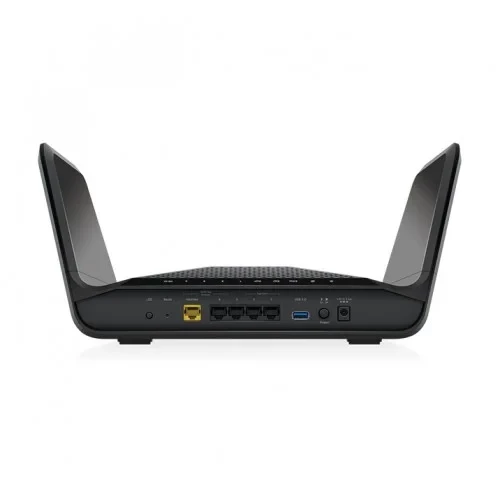

Ports
5 Gigabit ports—Connect more wired
devices for faster file transfer and
uninterrupted connections. Two (2) ports
can be aggregated for faster LAN
transfer and two (2) can be aggregated
to enable Multi-Gig Internet
Others
Processor: Quad-core 1.5GHz
USB Sharing Support: Yes
Physical Dimension
Dimension
Folded size: 11.85 x 8.15 x 3.31 in (301 x 207 x 84 mm)
Unfolded size: 13.66 x 8.19 x 6.57 in (347 x 208 x 167 mm)
Weight
2.58 lb (1171 g)
Color
Black
Manufacturer warranty
2 years Warranty
