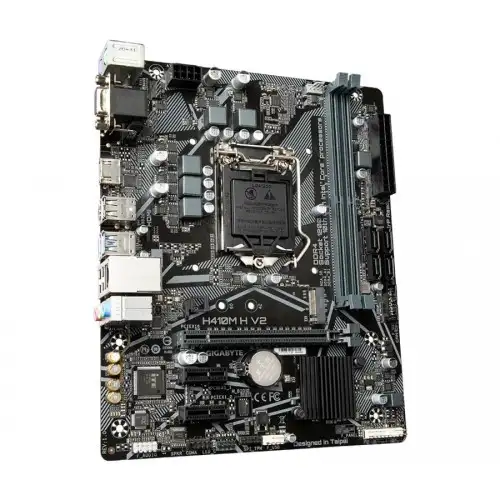

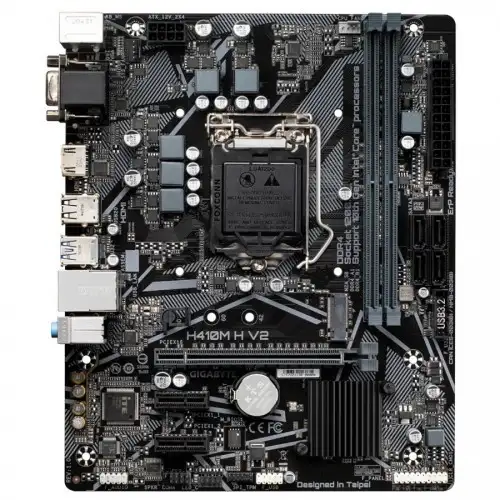

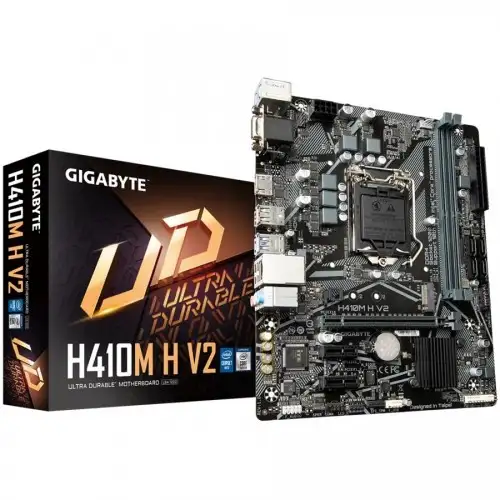

Gigabyte H410M H V2 10th & 11th Gen Micro ATX Motherboard

Basic Information

Supported CPU: Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package

Chipset: Intel H410 Express Chipset

Form Factor: Micro ATX Form Factor: 22.6cm x 18.5cm

Expansion Slots

PCI: 1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

M.2 Socket: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/ x2 SSD support)

Memory

Type: DDR4

Slots: 2 x DIMM

Supported Memory: Intel Core i5/ i3/ Pentium/ Celeron processors:

Support for DDR4 2666/ 2400/ 2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory: 64GB (32 GB single DIMM capacity)

Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz

1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz

Max Shared Memory: 512MB

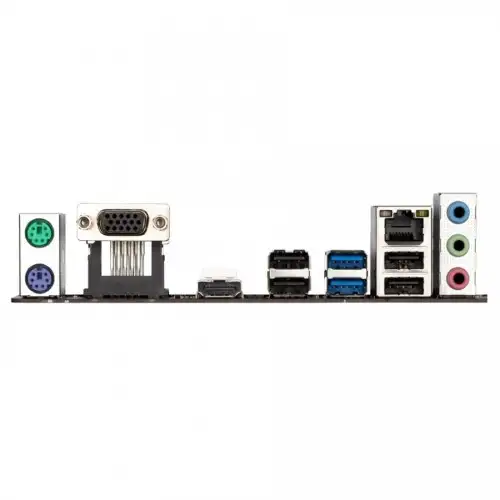

Connector & Ports

1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz

1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/ 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)

Intel GbE LAN chip (1 Gbit/100 Mbit)

Supported Storage

1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe x4/ x2 SSD support)

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel Optane Memory Ready

Audio

Realtek Audio CODEC

High Definition Audio

2/ 4/ 5.1/ 7.1-channel

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x serial port header

1 x Clear CMOS jumper

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Manufacturing Warranty: 03 Years
