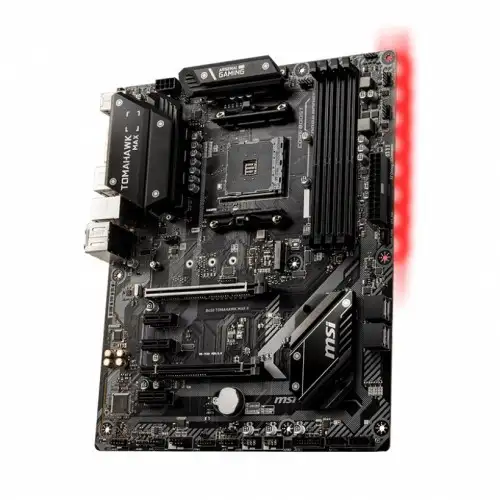

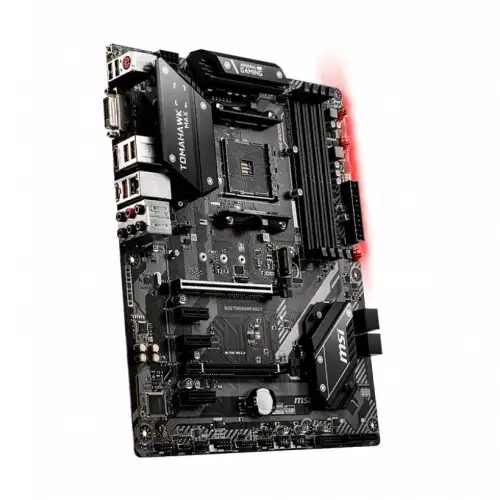

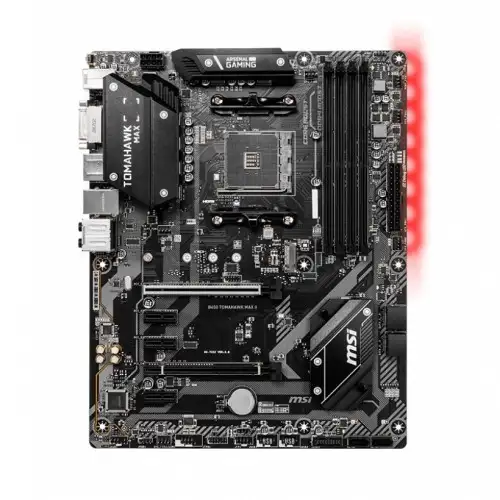

MSI B450 TOMAHAWK MAX II AMD AM4 ATX Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳11 900 /1

Supported Ram BUS Speed:
Cpu Socket:
Motherboard Manufacturer:
Motherboard Form Factor:
Motherboard Memory Technology:
Number of RAM Slots:
Product Condition:
Quantity:

Total Price:

Phone  :  +8801992298693, +8801891965674
Email  :  [email protected]
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:

Basic Information

Supported CPU

Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4

Chipset: AMD B450 Chipset

Audio

Realtek ALC892/ALC897 Codec

7.1-Channel High Definition Audio

Expansion Slots

PCI

1 x PCIe 3.0 x16 slot (PCI_E1)

1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed

Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed

1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)

3 x PCIe 2.0 x1 slots

Memory

Type: DDR4

Slots: 4 x DDR4 memory slots

Supported Memory

- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

- For AMD Ryzen Gen3 (R5/R7/R9)

- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)

- For AMD Other CPU

- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

- Dual channel memory architecture

- Supports non-ECC UDIMM memory

- Supports ECC UDIMM memory (non-ECC mode)

Maximum Memory: 128GB

Graphics

1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz

1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160@60Hz

Max Shared Memory: 16GB

Connector & Ports

HDMI: 1 x HDMI 2.1 port

DVI-D (s): 1 x DVI-D port

USB (s)

AMD B450

1x USB 3.2 Gen 2 10Gbps Type-C port on the back panel

1x USB 3.2 Gen 2 10Gbps Type-A port on the back Panel

2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD CPU: 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

LAN Port (s): 1 x Realtek 8111H Gigabit LAN controller

Supported Storage

AMD CPU

2 x SATA 6Gb/s ports

1 x M.2 slot (Key M)

Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s

Supports 2242/ 2260 /2280/ 22110 storage devices

AMD B450

4 x SATA 6Gb/s ports

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)

1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)

1 x 4-pin CPU fan connector

1 x 4-pin water-pump-fan connector

4 x 4-pin system fan connectors

1 x TPM module connector

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x Serial Port connector

1 x Clear CMOS jumper

2 x 5050 RGB LED strip 12V connectors

TPM (Trusted Platform Module )

1 x TPM module connector

Warranty Information

Manufacturing Warranty: 03 years warranty
