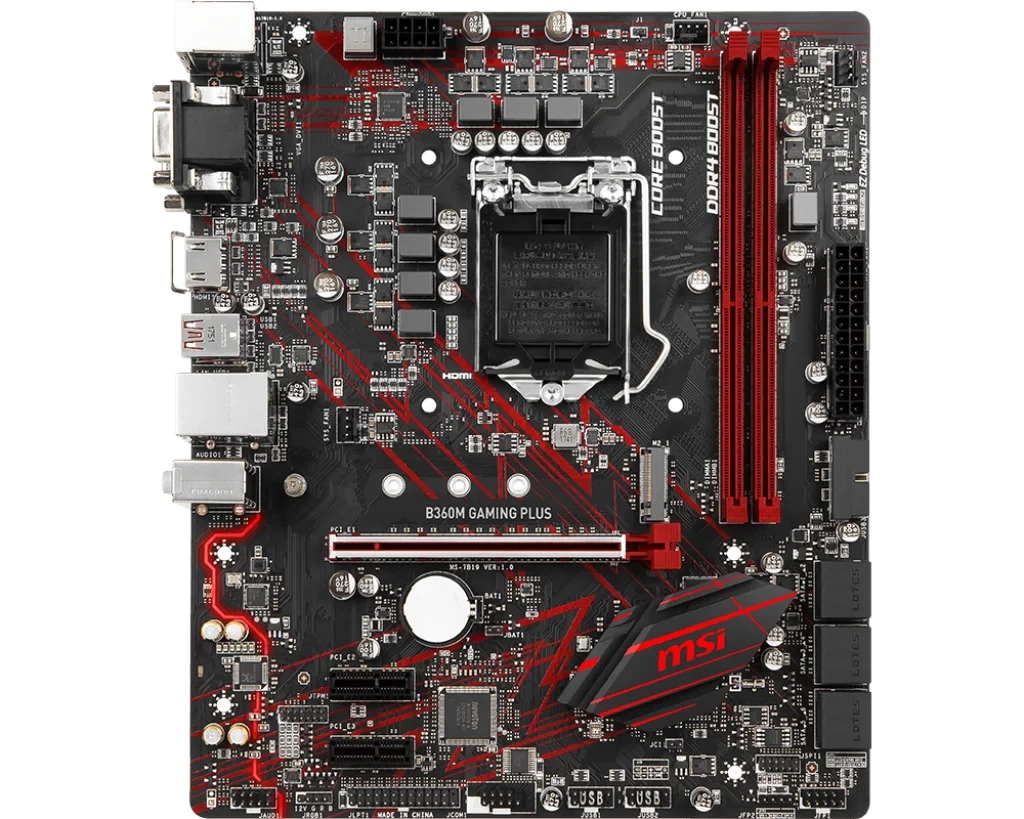

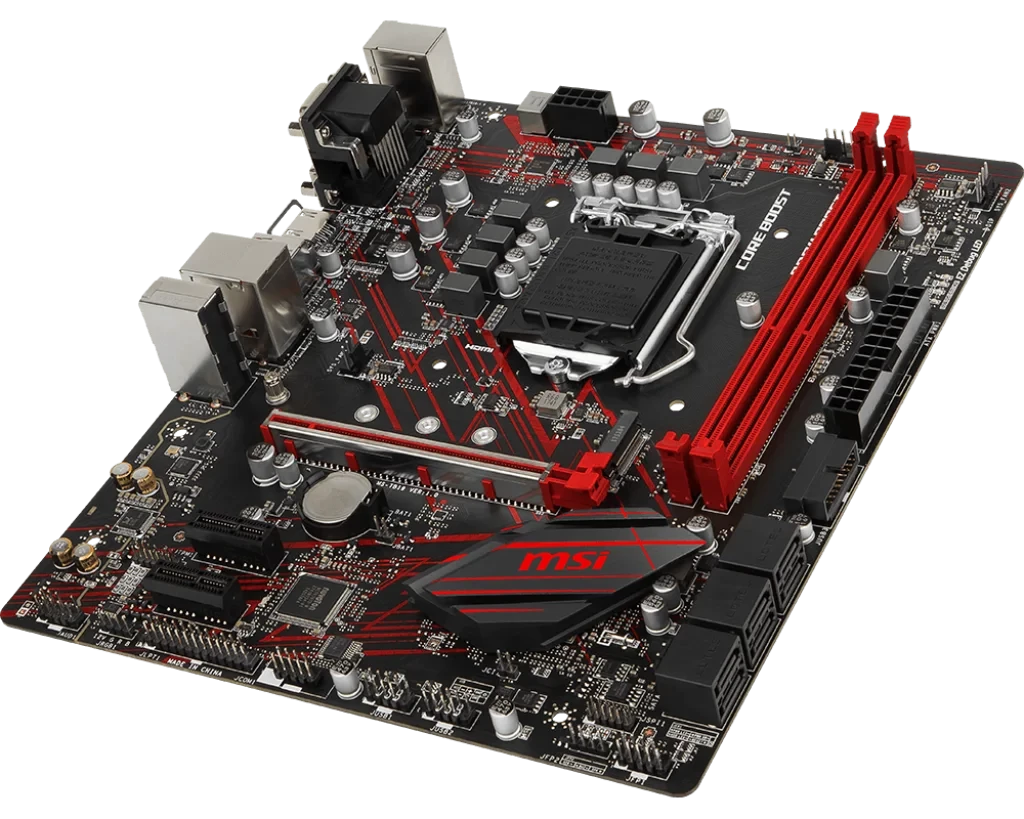

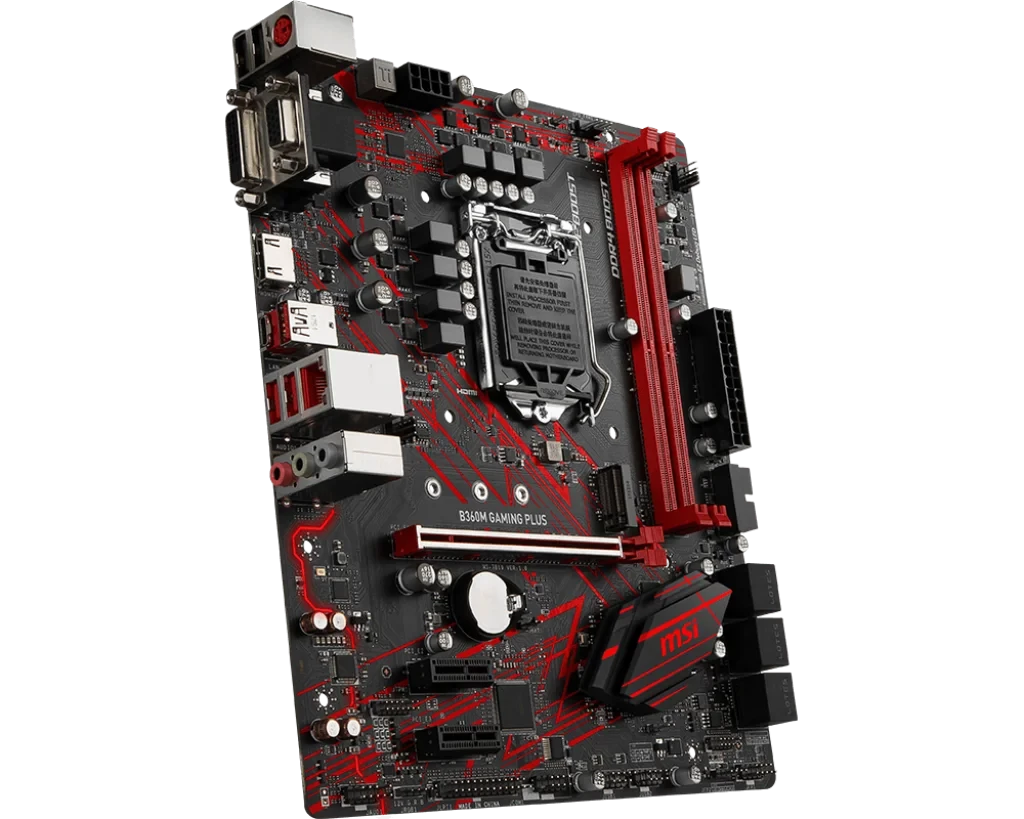

MSI B360M 8th Gen DDR4 Micro-ATX Motherboard (USed)

Basic Information

Supported CPU

Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151

Chipset

Intel® B360 Chipset

Form Factor: Micro-ATX Form Factor

Expansion Slots

PCI

1 x PCIe 3.0 x16 slots (support x16/x4 modes)

M.2 Socket: 1 x M.2 slots (Key M)

Memory

Type: Dual channel memory architecture

Slots: 2 x DDR4 memory slots

Supported Memory

Supports DDR4 2666/ 2400/ 2133 MHz

Supports non-ECC UDIMM memory

Supports Intel® Extreme Memory Profile (XMP)

Maximum Memory: 32 GB

Graphics

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

1 x DisplayPort, supports a maximum resolution of 4096X2304@60Hz

1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz

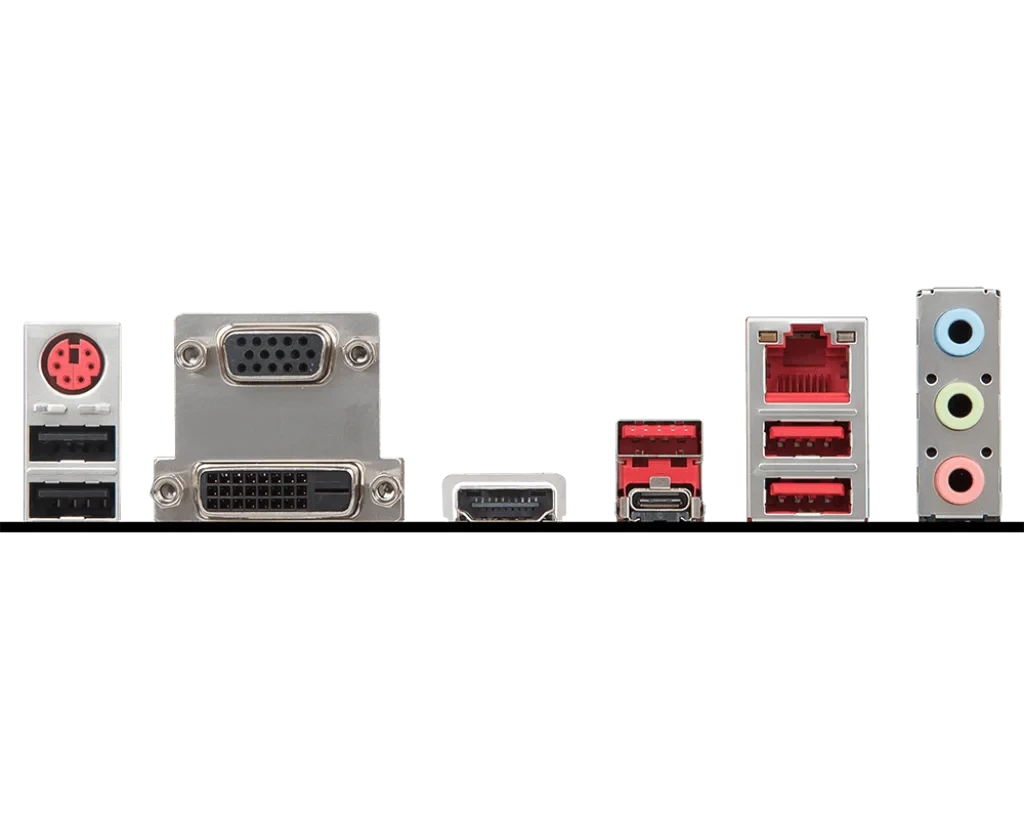

Connector & Ports

HDMI

1 x HDMI™ port

Display Port (s)

1 x DisplayPort port

USB (s)

3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)

2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector

LAN Port (s)

1 x Intel I219-V Gigabit LAN controller

Supported Storage

6 x SATA 6Gb/s ports

1 x M.2 slots (Key M)

M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1

M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices**2

Intel® Optane™ Memory Ready ,supported on M2_2 3

SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Audio

Realtek® ALC1220 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Warranty : No Warranty
