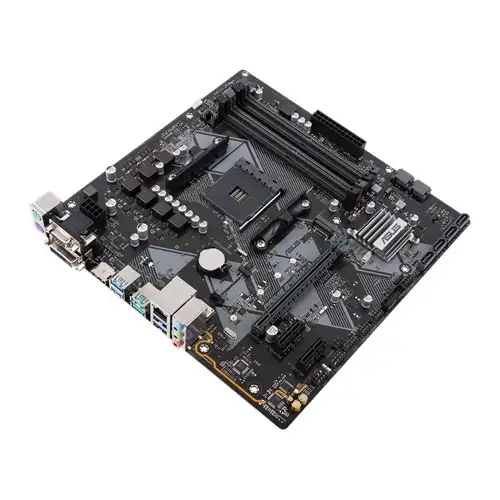

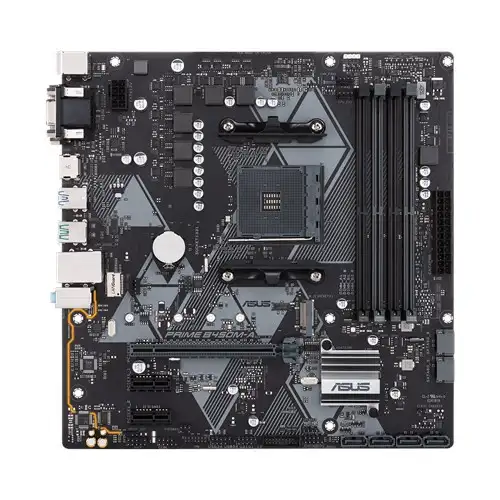

ASUS PRIME B450M-A AMD mATX Motherboard (Used)

Basic Information

Supported CPU

AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors

Chipset: AMD B450

Form Factor

mATX Form Factor

9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )

Expansion Slots

PCI

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors

1 x PCIe 3.0/2.0 x16 (x16 mode)

AMD Ryzen™ with Radeon™ Vega Graphics Processor

1 x PCIe 3.0/2.0 x16 (x8 mode) *1

AMD Athlon™ with Radeon™ Vega Graphics Processors

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

AMD B450 chipset

2 x PCIe 2.0 x1

M.2 Socket

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

AMD Athlon™ with Radeon™ Vega Graphics Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

Memory

Type: Dual Channel DDR4 Memory Technology

Slots: 4 x DIMM

Supported Memory

DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Maximum Memory: 64 GB

Graphics

Multi-VGA output support : HDMI/DVI-D/D-Sub ports

- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

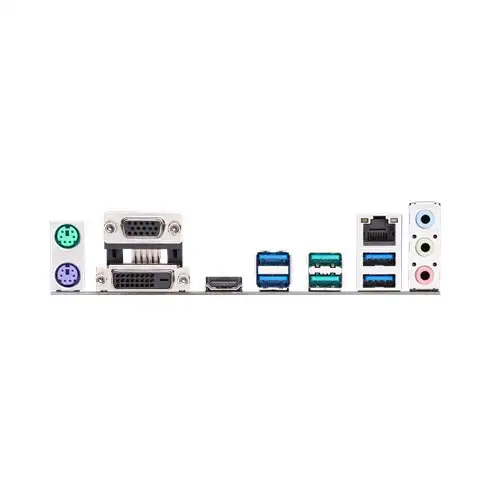

Connector & Ports

HDMI

1 x HDMI port

D-Sub (s)

1 x D-Sub

DVI-D (s)

1 xDVI-D

USB (s)

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)

AMD B450 chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, )

AMD B450 chipset :

2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

AMD B450 chipset :

4 x USB 2.0/1.1 port(s) (4 at mid-board)

LAN Port (s)

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

ASUS LAN Guard

Supported Storage

AMD B450 chipset :

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

2 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

AMD Athlon™ with Radeon™ Vega Graphics Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

Audio Feature :

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Internal I/O Ports

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (2 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x Speaker connector

TPM (Trusted Platform Module )

1 x TPM header

Warranty Information

Warranty: 1 Year
