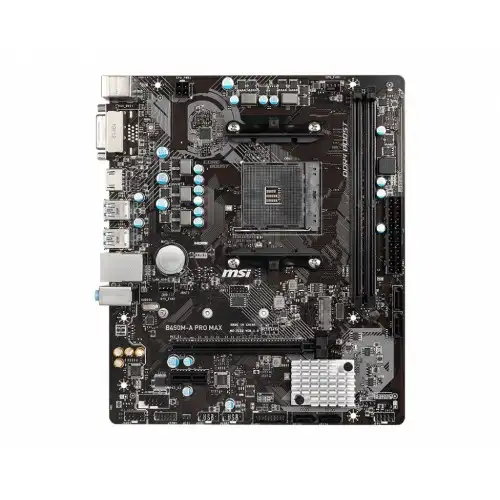

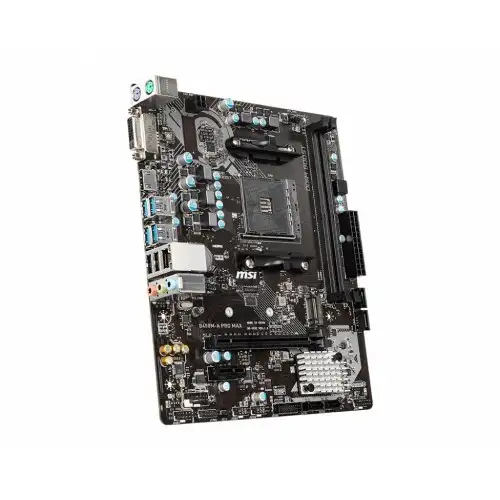

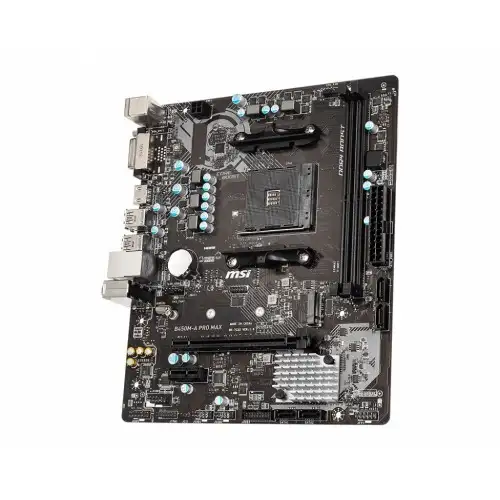

MSI B450M-A PRO MAX AMD AM4 Motherboard (Used)

(0 reviews)

Sold by:
Inhouse product

Price:
৳5 000 /1

Supported Ram BUS Speed:
Cpu Socket:
By Stock:
Motherboard Manufacturer:
Number of RAM Slots:
Motherboard Form Factor:
Motherboard Memory Technology:
Quantity:
(In Stock)

Total Price:

Phone  :  +8801891965674
Email  :  [email protected]
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:

Basic Information

Supported CPU

Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

Chipset: AMD B450 Chipset

Form Factor: m-ATX

Expansion Slots: PCI

1 x PCIe 3.0 x16 slot (PCI_E1)

- Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors

- Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors

- Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors

2 x PCIe 2.0 x1 slots

M.2 Socket

1 x M.2 slot (Key M)

- Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics) and SATA 6Gb/s

- Supports 2242/2260/2280 storage devices

Memory

Type: DDR4

Slots: 2

Supported Memory

Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)

- For AMD Ryzen Gen3 (R5/R7/R9) :

- 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)

- For AMD Other CPU

- 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Dual channel memory architecture

Supports ECC UDIMM memory (non-ECC mode)

Support non-ECC UDIMM memory

Maximum Memory: 32GB

Graphics

1 x DVI-D port, supports a maximum resolution of [email protected]

1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

Max Shared Memory: 2048 MB

Connector & Ports

HDMI: Yes

DVI-D (s): Yes

USB (s): 6 x USB 3.2 Gen1 + 6 x USB 2.0

LAN Port (s): Realtek 8111H Gigabit LAN

AMD B450 Chipset

- 4 x SATA 6Gb/s ports

- Supports RAID 0, RAID1 and RAID 10

- 1x M.2 slot (Key M)

- Supports PCIe 3.0 x4 and SATA 6Gb/s

- 1st, 2nd and 3rd Gen AMD Ryzen

- Ryzen with Radeon Vega Graphics

- 2nd Gen AMD Ryzen with Radeon Graphics

- Supports PCIe 3.0 x2 and SATA 6Gb/s

- AMD Athlon with Radeon Vega Graphics

- A-series

- Athlon X4

- Supports 2242/ 2260/ 2280/ 22110 storage devices

Audio: 8-Channel(7.1) HD Audio with Audio Boost

Internal I/O Ports

1x 24-pin ATX main power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x Front panel connectors

1x Chassis Intrusion connector

1x Serial port connector

1x Clear CMOS jumper

TPM (Trusted Platform Module )

1 x TPM module connector

Warranty: 2 Years

There have been no reviews for this product yet.
