Basic Information
Supported CPU: Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Chipset: Intel H410 Express Chipset
Form Factor: Micro ATX Form Factor: 22.6cm x 18.5cm
Expansion Slots
PCI: 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
M.2 Socket: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/ x2 SSD support)
Memory
Type: DDR4
Slots: 2 x DIMM
Supported Memory: Intel Core i5/ i3/ Pentium/ Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory: 64GB (32 GB single DIMM capacity)
Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz
Max Shared Memory: 512MB

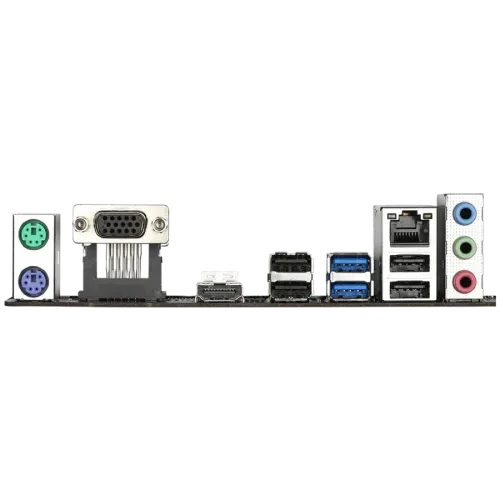

Connector & Ports
1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz
1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/ 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)
Intel GbE LAN chip (1 Gbit/100 Mbit)
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe x4/ x2 SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
Audio
Realtek Audio CODEC
High Definition Audio
2/ 4/ 5.1/ 7.1-channel
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
