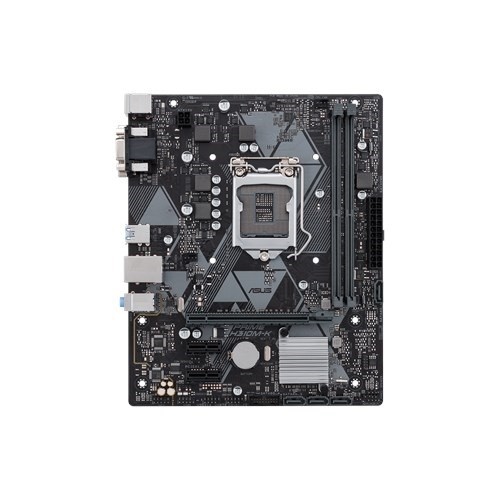

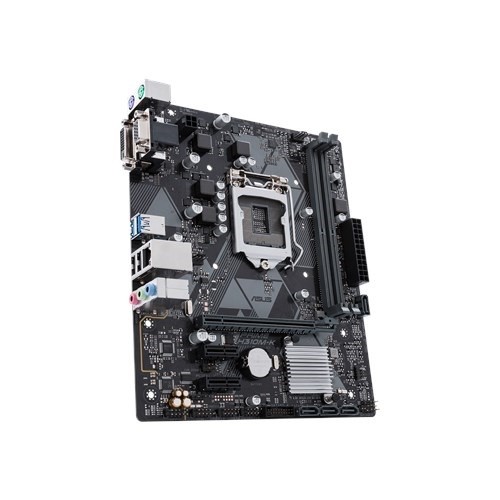

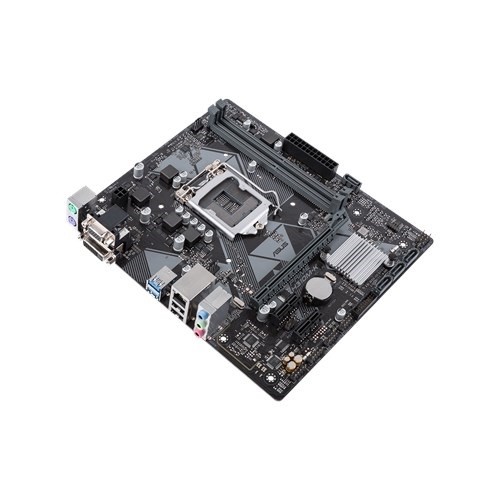

Asus PRIME H310M-K R2.0 8th Gen mATX Motherboard

Specification
Basic Information

Supported CPU

• Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Chipset

• Intel H310

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information

Form Factor

• mATX Form Factor
• 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )

Expansion Slots

PCI

• 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
• 2 x PCIe 2.0 x1

Memory

Type

• DDR4

Slots

• 2 x DIMM

Supported Memory

• Supports Intel® Extreme Memory Profile (XMP)
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• * The maximum memory frequency supported varies by processor
• ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Maximum Memory

• 32GB

Graphics

Graphics

• Multi-VGA output support : DVI-D/D-Sub ports
• - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
• - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
• Max Shared Memory
• Maximum shared memory of 1024 MB (for iGPU exclusively)
• Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Connector & Ports

• USB (s)
• Intel® H310 Chipset :
• 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
• Intel® H310 Chipset :
• 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

LAN Port (s)

• Realtek® RTL8111H, 1 x Gigabit LAN

Supported Storage

• Intel® H310 Chipset :
• 4 x SATA 6Gb/s port(s), gray,

Audio

• Realtek® ALC887 8-Channel High Definition Audio CODEC
• - Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

• - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
• - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
• - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Internal I/O Ports

• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x Speaker connector

Warranty Information

Manufacturing Warranty

• 03 Years
