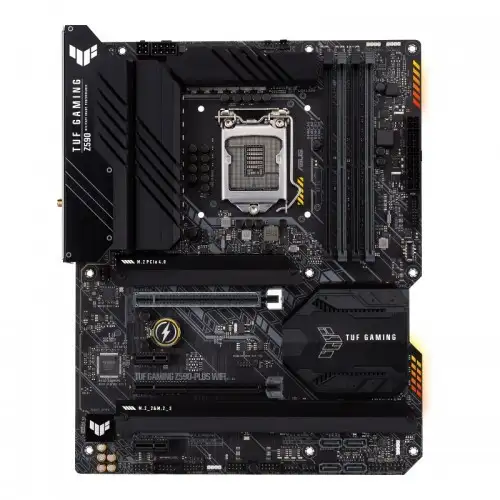

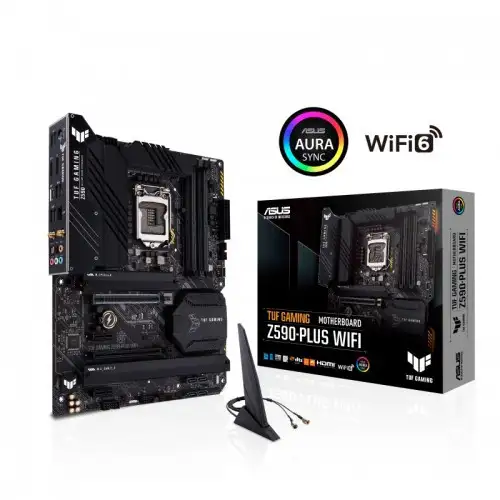

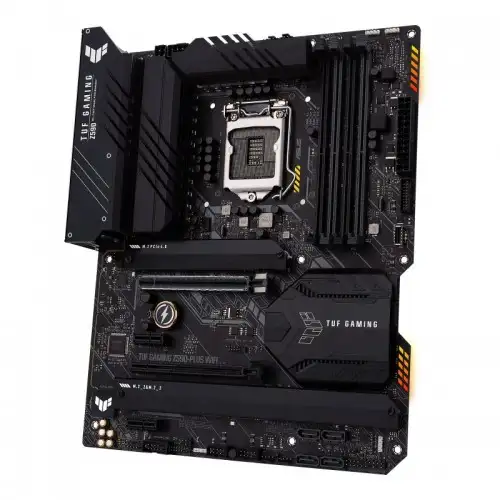

Asus TUF Gaming Z590-Plus Wi-Fi Intel 10th and 11th Gen ATX Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳24 600 /1

Cpu Socket:
Supported Ram BUS Speed:
Number of RAM Slots:
Motherboard Manufacturer:
Motherboard Form Factor:
Motherboard Memory Technology:
Product Condition:
Quantity:

Total Price:

Phone  :  +8801891965674
Email  :  info@systembuilder.com.bd
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:

Basic Information
Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset: Intel Z590 Chipset
Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI: Intel 11th & 10th Gen Processors
1 x PCIe 4.0/ 3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16
- Intel10th processors support PCIe 3.0 x16
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
M.2 Socket: M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type: DDR4
Slots: 4 x DIMM
Supported Memory: 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory: 128GB
Graphics
1x DisplayPort 1.4
1x HDMITM 2.0

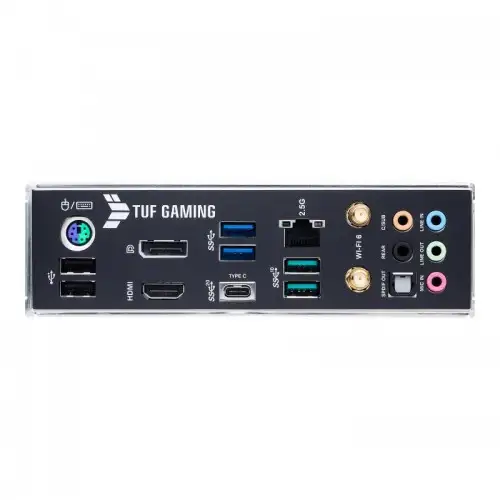

Connector & Ports
1x HDMITM 2.0
1x DisplayPort 1.4
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Intel I225-V 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
"Intel Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/ b/ g/ n/ ac/ ax)
Supports 2.4/ 5GHz frequency band
Bluetooth v5.0 or later"
Supported Storage
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel 11th Gen Processors
M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Audio
"Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Audio cover
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
TPM (Trusted Platform Module )
    N/A
Manufacturing Warranty: 3 Years
