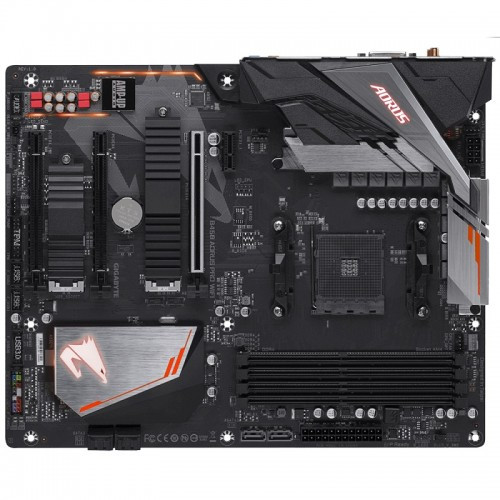

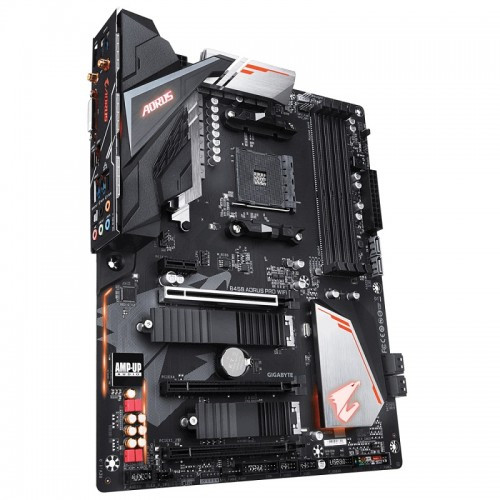

Gigabyte B450 AORUS PRO WIFI AMD ATX Motherboard (Used)

Specification

Basic Information

Supported CPU

AMD Ryzen™ 2nd Generation processors

AMD Ryzen™ with Radeon™ Vega Graphics processors

AMD Ryzen™ 1st Generation processors

Chipset : AMD B450

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Expansion Slots

PCI

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* Actual support may vary by CPU.

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.

1 x PCI Express x16 slot, running at x1 (PCIEX1_2)

1 x PCI Express x1 slot (PCIEX1_1)

(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)

Memory : Type

Dual Channel DDR4 Memory Technology

Slots

4 x DIMM

Supported Memory

4 x DDR4 DIMM sockets supporting up to 128 GB of system memory

Dual channel memory architecture

Support for DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.)/2933/2667/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory : 64 GB

Graphics

Graphics

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.2.

* Actual support may vary by CPU.

Max Shared Memory : 16 GB

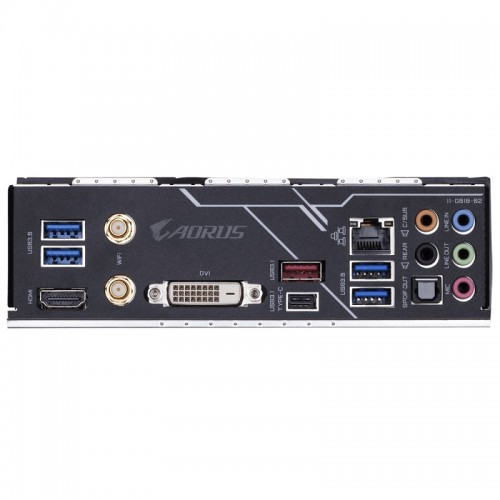

Connector & Ports

HDMI

1 x HDMI

DVI-D (s)

1 x DVI-D

USB (s)

Chipset:

1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

2 x USB 3.1 Gen 1 ports available through the internal USB header

4 x USB 2.0/1.1 ports available through the internal USB headers

CPU:

4 x USB 3.1 Gen 1 ports on the back panel

LAN Port (s)

Intel® GbE LAN chip (10/100/1000 Mbit)

Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 4.2

Support for 11ac wireless standard and up to 433 Mbps data rate

* Actual data rate may vary depending on environment and equipment.

1 x M.2 Socket 1 connector for a wireless communication module (M2_WIFI)

Supported Storage

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Audio

Realtek® ALC1220-VB codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

1 x system fan/water cooling pump header

1 x CPU cooler LED strip/RGB LED strip header

2 x digital LED strip headers

2 x digital LED strip power select jumpers

1 x RGB (RGBW) LED strip header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

TPM (Trusted Platform Module )

1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
