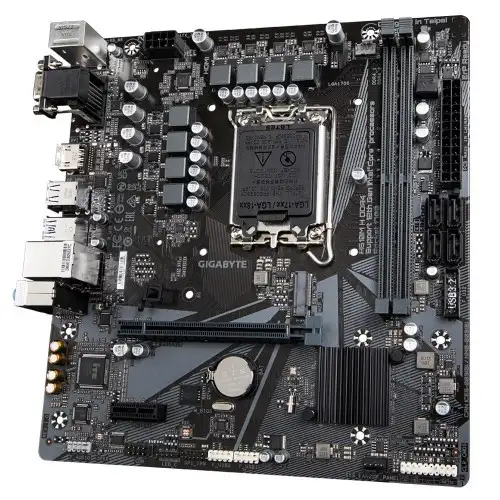

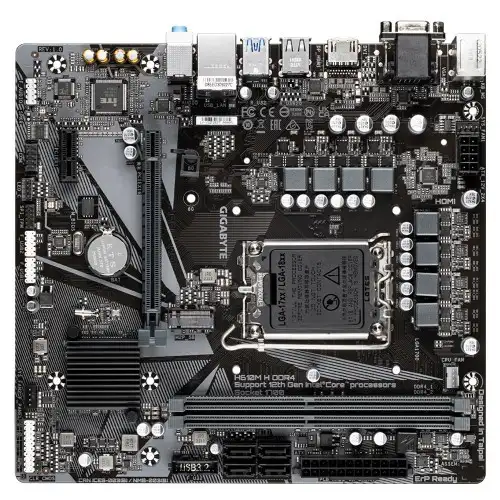

Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard

Basic Information

Supported CPU: LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors

L3 cache varies with CPU

Chipset: Intel H610 Express Chipset

Form Factor: Micro ATX Form Factor; 23.0cm x 21.5cm

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Expansion Slots

PCI: 1 x PCI Express x16 slot, running at x16

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)

1 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Memory

Type: DDR4

Slots: 2 x DDR DIMM sockets

Supported Memory: 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory: Up to 64 GB (32 GB single DIMM capacity) of system memory

Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports

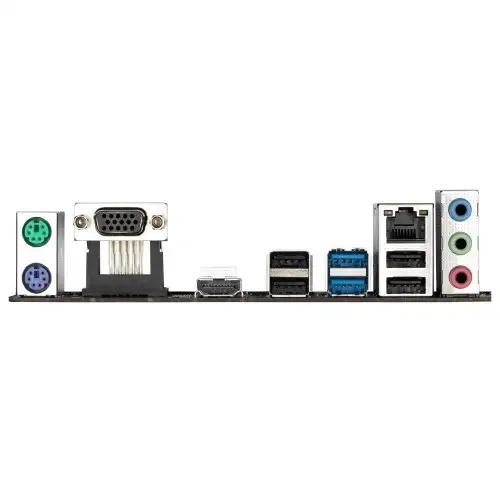

Connector & Ports

1 x HDMI 2.0 port

1 x D-Sub port

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

LAN Port (s)

Intel GbE LAN chip (1 Gbps/100 Mbps)

Supported Storage

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Audio

3 x audio jacks

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Manufacturing Warranty: 3 years
