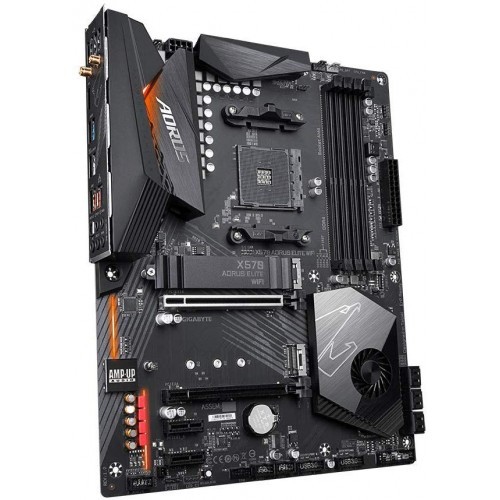

Gigabyte X570 AORUS ELITE WIFI AMD Motherboard (used)

Top Selling Products

Corsair Vengeance LPX 8GB 3200MHz DDR4 Desktop RAM (Used)

৳2 200
Corsair Vengeance LPX 8GB 2400MHz DDR4 Desktop RAM (Used)

৳2 000
AMD Ryzen 5 5600G 6 Cores 12 Threads Processor with Radeon Graphics

৳12 800
Seagate Internal 1TB SATA Barracuda HDD (Used)

৳1 800
AMD Ryzen 5 3600 6 Cores 12 Threads Processor (Used)

৳6 000
Intel DC S3700 400GB 2.5 Inch SATA SSD (Used)

৳3 500

Description reviews

Specification

Basic Information
Supported CPU	AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors
Chipset	AMD X570
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek ALC1200 codec High Definition Audio 2/4/5.1-channel Support for S/PDIF Out
Expansion Slots
PCI	Integrated in the CPU (PCIEX16): · AMD Ryzen 5000 Series/ 3rd Gen Ryzen Processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen Processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4) 2 x PCI Express x1 slots, supporting PCIe 4.0/3.0
M.2 Socket	2 x M.2 Socket 3 connectors
Memory
Type	DDR4, Dual channel memory architecture
Slots	4 x DDR4 DIMM sockets
Supported Memory	3rd Generation AMD Ryzen processors: - Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules - 2nd Generation AMD Ryzen processors/AMD Ryzen with Radeon Vega Graphics processors: - Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC mode supported by 3rd Gen AMD Ryzen/ 2nd Gen AMD Ryzen and only PRO sku of 2nd Gen AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors. - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Max Shared Memory	Maximum shared memory of 16 GB
Connector & Ports
HDMI	1 x HDMI port
USB (s)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Intel GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module	Wi-Fi 802.11 a/ b/ g/ n/ ac, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate
Supported Storage	Integrated in the CPU (M2A_SOCKET): · AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen Processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · AMD Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio	5 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper 1 x Q-Flash Plus button
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) cFosSpeed
