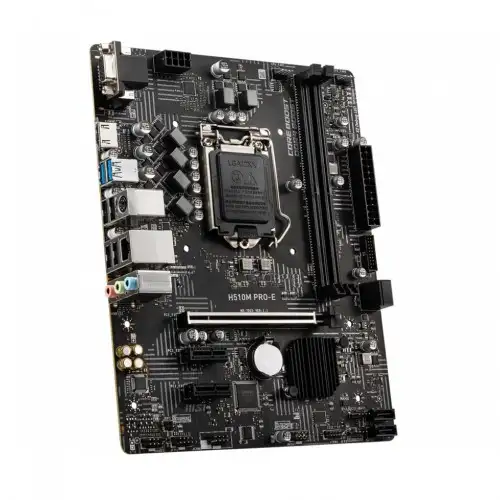

MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

Basic Information

Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1

Chipset: Intel H510 Chipset

Form Factor: mATX Form Factor 9.3 x 7.5 in. (23.6 cm x 19.0 cm)

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Expansion Slots

1x PCIe x16 slot (From CPU)

Support up to PCIe 4.0 for 11th Gen Intel CPU

Support up to PCIe 3.0 for 10th Gen Intel CPU

2x PCIe 3.0 x1 slots (From PCH)

Memory

Type: DDR4

Slots: 2x DDR4 memory slots

Supported Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

Maximum Memory: up to 64GB

Graphics

1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz

1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz

Connector & Ports

HDMI

1x HDMI 1.4 port

VGA (s)

1x VGA port

USB (s)

Intel H510 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

LAN Port (s)

1x Realtek RTL8111 Gigabit LAN controller

Supported Storage

4x SATA 6Gb/s ports (From H510 Chipset)

Audio

1x Front panel audio connector

Internal I/O Ports

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)

1x USB 2.0 connector (support additional 2 USB ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x System panel connectors

1x Serial port connector

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

TPM (Trusted Platform Module )

1x TPM module connector

Manufacturing Warranty: 03 years warranty
