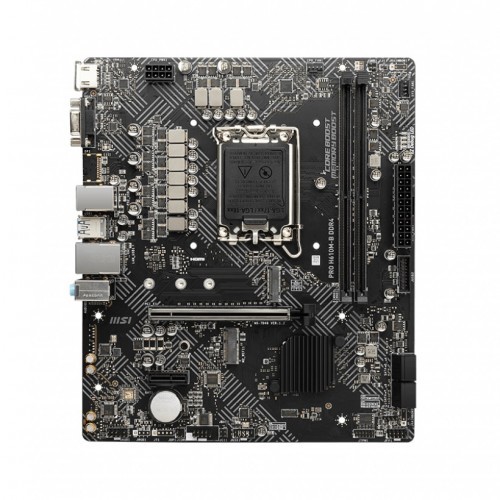

MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard

Specification
Basic Information

Supported CPU

• Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
• Processor socket LGA1700

Chipset

• Intel H610 Chipset

Form Factor

• M-ATX Form Factor
• 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)

Audio

• Realtek ALC892/ ALC897 Codec
• 7.1-Channel High Definition Audio

Expansion Slots

PCI

• 1x PCIe x16 slot (From CPU)
• Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot
• Supports PCIe 3.0 x1
• 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)

Memory

Type

• DDR4

Slots

• 2x DDR4 memory slots

Supported Memory

• 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

• Support up to 64GB

Graphics

Graphics

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
• 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
• Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

Connector & Ports

HDMI

• 1x HDMI 2.1

VGA (s)

• 1x VGA port

USB (s)

• Intel H610 Chipset:
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

LAN Port (s)

• 1x Intel I219V 1Gbps LAN controller
• Supported Storage
• 1x M.2 slot (Key M, from chipset)
• Supports up to PCIe 3.0 x4
• Supports up to SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• Supports Intel Smart Response Technology for Intel Core processors

Internal I/O Ports

• POWER CONNECTORS:
• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• FAN CONNECTORS:
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• SYSTEM CONNECTORS:
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• JUMPERS:
• 1x Clear CMOS jumper
• LED FEATURES:
• 4x EZ Debug LED

TPM (Trusted Platform Module )

• 1x TPM module connector

Warranty Information

Manufacturing Warranty

• 3 years
