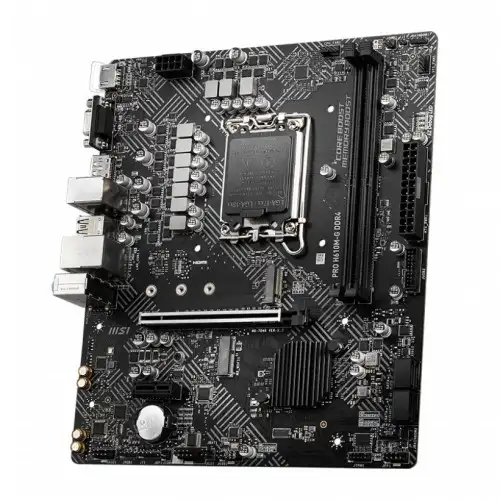

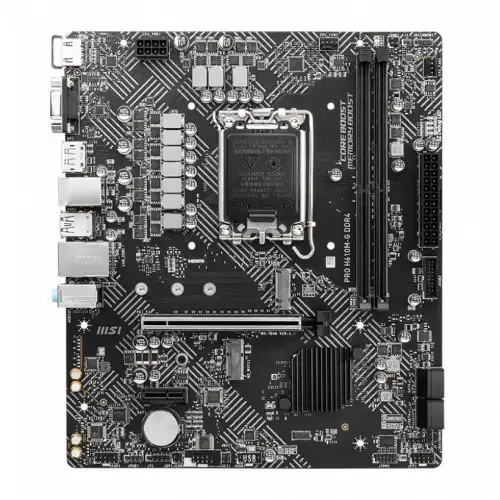

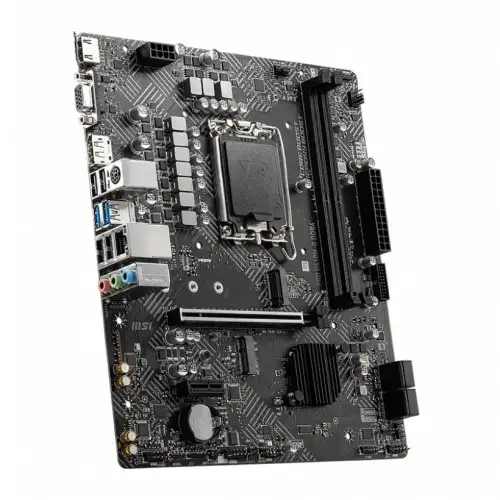

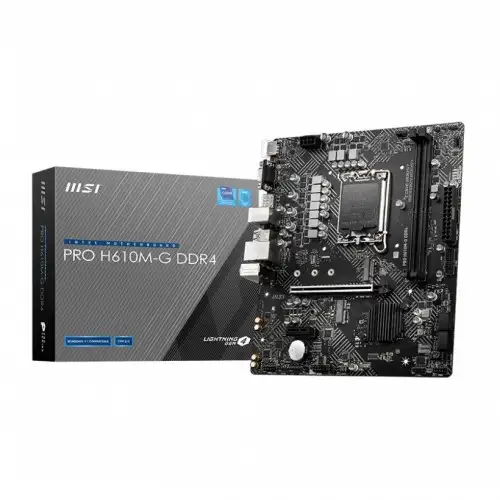

MSI PRO H610M-G DDR4 12th Gen Mirco-ATX Motherboard

Basic Information

Supported CPU

Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Processor socket LGA1700

Chipset: Intel H610 Chipset

Audio

Realtek ALC892/ ALC897 Codec

7.1-Channel High Definition Audio

Expansion Slots

PCI

1x PCIe x16 slot (From CPU)

Supports up to PCIe 4.0 x16

1x PCIe x1 slot

Supports PCIe 3.0 x1: 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

Memory

Type: DDR4

Slots: 2x DDR4 memory slots

Supported Memory

Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Maximum Memory: Support up to 64GB

Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

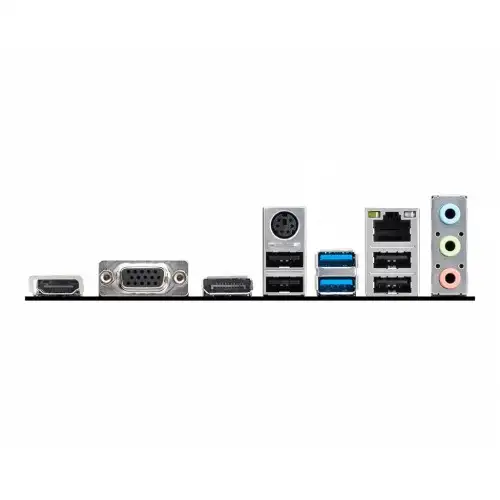

Connector & Ports

HDMI: 1x HDMI 2.1

Display Port (s): 1x DisplayPort

VGA (s): 1x VGA port

USB (s)

Intel H610 Chipset:

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

LAN Port (s): 1x Intel I219V 1Gbps LAN controller

Supported Storage

4x SATA 6Gb/s ports

1x M.2 slot (Key M, from chipset)

Supports up to PCIe 3.0 x4

Supports up to SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Supports Intel Smart Response Technology for Intel Core processors

Internal I/O Ports

POWER CONNECTORS:

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

FAN CONNECTORS:

1x 4-pin CPU fan connector

1x 4-pin system fan connector

SYSTEM CONNECTORS:

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

JUMPERS:: 1x Clear CMOS jumper

LED FEATURES:

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

4x EZ Debug LED

TPM (Trusted Platform Module )

1x TPM module connector

Manufacturing Warranty: 3 years
