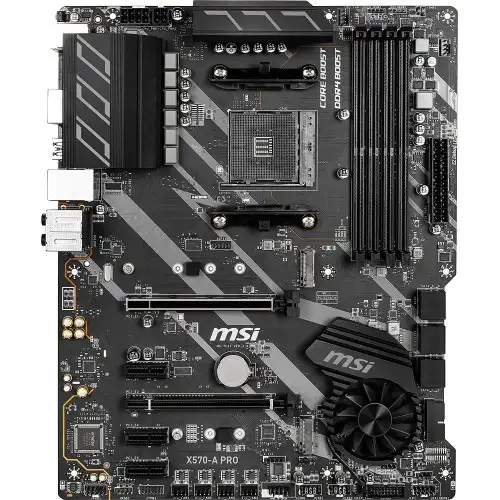

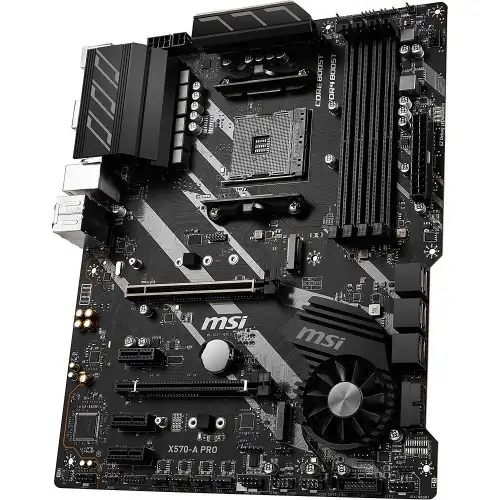

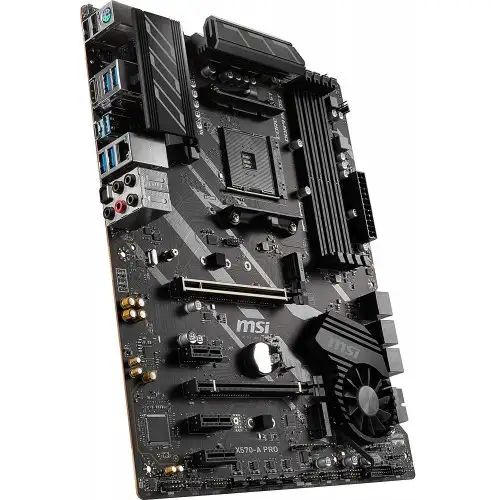

MSI X570-A Pro DDR4 AMD AM4 Socket Motherboard

Basic Information

Supported CPU: Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors

Chipset: AMD X570

Expansion Slots

PCI

PCI Express 4.0 x16 :

- 1 x PCIe 4.0/3.0 x16 slot (PCIE_1)

- 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode

- 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode

- Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode

-1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode)

PCI Express x1 :

- 3 x PCIe 3.0 x1 slots*

M.2 Socket

2 x M.2 slot (Key M):

M2_1 slot (from AMD Processor)

Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)

Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)

Supports 2242/2260/2280/22110 storage devices

M2_2 slot (from AMD X570 Chipset)

Supports PCIe 3.0 x4 and SATA 6Gb/s

Supports 2242/2260/2280 storage devices

Memory

Type:' DDR4

Slots: 4

Supported Memory

3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC

2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC

Maximum Memory: 128GB

Graphics

Supported only by CPU with integrated graphic:

- 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@24Hz

Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors

Max Shared Memory

Maximum shared memory of 2048MB

Connector & Ports

HDMI: Yes (1.4 )

USB (s)

AMD X570 Chipset :

- 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2

Gen 1 connectors)

- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0

connectors)

AMD Processor :

- 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and

2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel

- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

LAN Port (s)

1 x Realtek 8111H Gigabit LAN Controller

Supported Storage

6 x SATA 6Gb/s

2 x M.2 slot (Key M):

M2_1 slot (from AMD Processor)

Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)

Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)

Supports 2242/2260/2280/22110 storage devices

M2_2 slot (from AMD X570 Chipset)

Supports PCIe 3.0 x4 and SATA 6Gb/s

Supports 2242/2260/2280 storage devices

Audio

Realtek ALC1220 Codec

7.1-Channel High Definition Audio

Supports Optical S/PDIF output

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water-pump connector

4 x 4-pin system fan connectors

1 x Front panel audio connector

2 x System panel connectors

1 x Serial port connector

1 x Clear CMOS jumper

1 x Chassis Intrusion connector

2 x 4-pin RGB LED connectors

2 x 3-pin RAINBOW LED connectors

4 x EZ Debug LEDs

TPM (Trusted Platform Module ): 1 x TPM module connector

Warranty Information

Manufacturing Warranty: 03 year warranty
