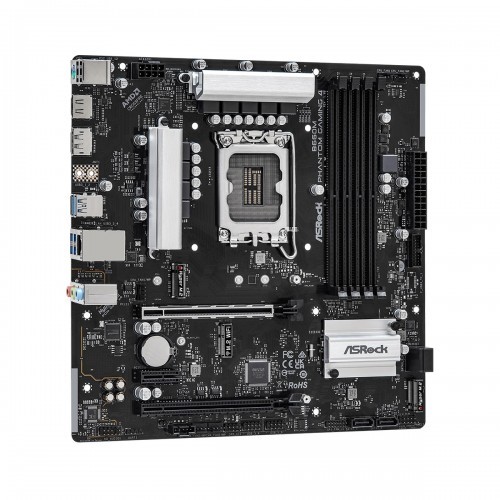

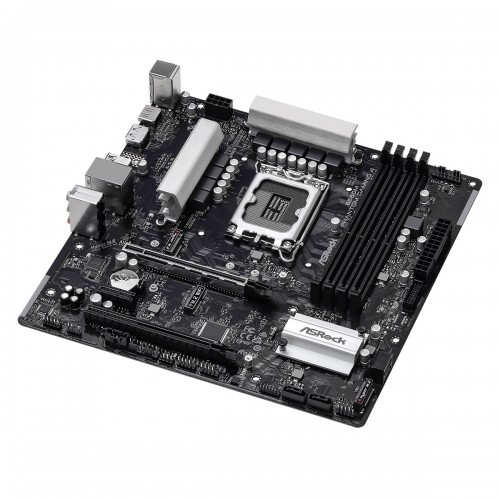

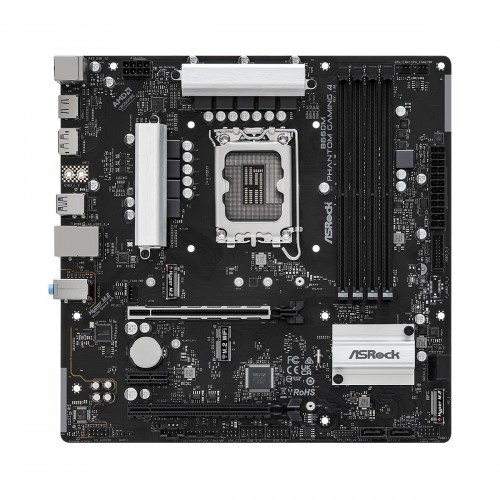

ASRock B660M Phantom Gaming 4 13th Gen & 12th Gen Micro ATX Motherboard

Specification
Basic Information

Supported CPU

• - Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700)
• - Digi Power design
• - 8 Power Phase design
• - Supports Intel Hybrid Technology
• - Supports Intel Turbo Boost Max 3.0 Technology

Chipset

• Intel B660

BIOS

• - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• - ACPI 6.0 Compliant wake up events
• - SMBIOS 2.7 Support
• - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Form Factor

• - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• - Solid Capacitor design

Audio

• - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Supports Surge Protection
• - Nahimic Audio

Expansion Slots

PCI

• - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
• - 1 x PCIe Gen3x1 Slot
• - Supports AMD CrossFire
• - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

Memory

Type

• Dual Channel DDR4 Memory Technology

Slots

• 4 x DDR4 DIMM Slots

Supported Memory

• - Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC)
• - Supports ECC UDIMM memory modules (operate in non-ECC mode)
• - Supports Intel Extreme Memory Profile (XMP) 2.0

Maximum Memory

• 128GB

Graphics

Graphics

• - Intel Xe Graphics Architecture (Gen 12)
• - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
• - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
• - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

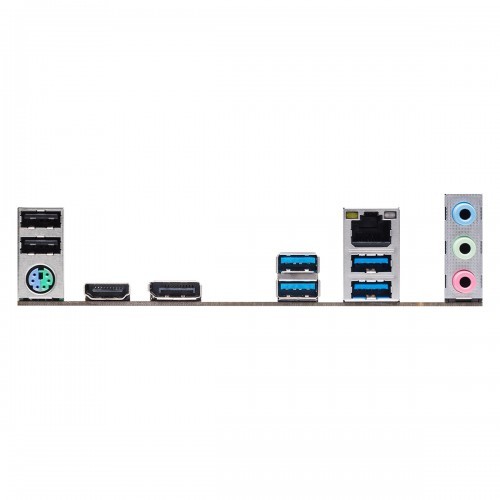

Connector & Ports

HDMI

• 1 x HDMI Port

Display Port (s)

• 1 x DisplayPort 1.4

USB (s)

• - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
• - 2 x USB 2.0 Ports (Supports ESD Protection)

LAN Port (s)

• - Gigabit LAN 10/100/1000 Mb/s
• - Giga PHY Intel I219V
• - Supports Wake-On-LAN
• - Supports Lightning/ESD Protection
• - Supports Energy Efficient Ethernet 802.3az
• - Supports UEFI PXE

Supported Storage

• - 4 x SATA3 6.0 Gb/s Connectors
• - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Audio

• - HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Ports

• - 1 x SPI TPM Header
• - 1 x Chassis Intrusion and Speaker Header
• - 1 x CPU Fan Connector (4-pin)
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

TPM (Trusted Platform Module )

• 1 x SPI TPM Header

Others

Special Features

• ASRock Super Alloy
• - Premium Power Choke
• - Sapphire Black PCB
• - High Density Glass Fabric PCB
• ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
• ASRock Steel Slot
• ASRock Hyper M.2 (PCIe Gen4x4)
• ASRock POST Status Checker (PSC)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

Warranty Information

Manufacturing Warranty

• 3 years
