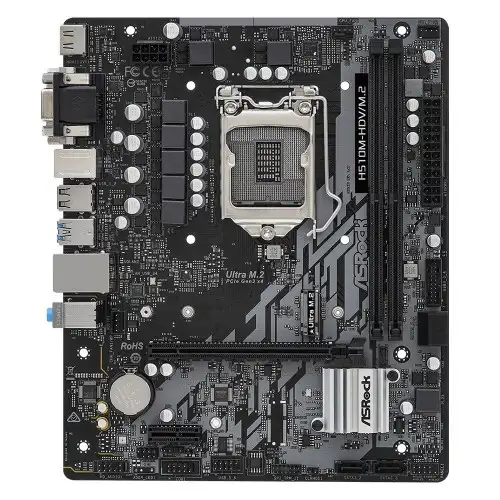

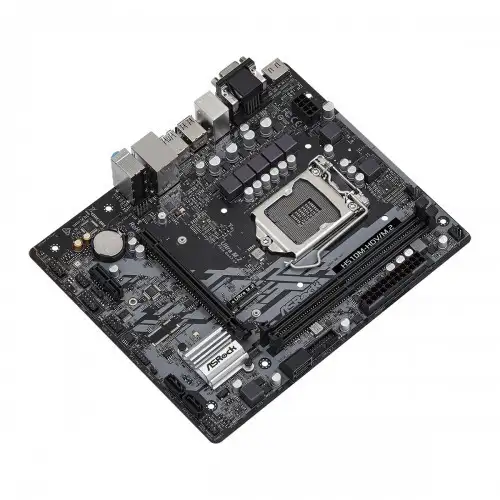

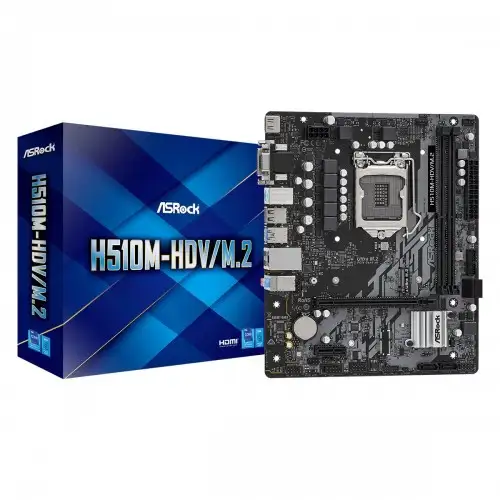

ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard

Basic Information

Supported CPU:

- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)

- Digi Power design

- 5 Power Phase design

- Supports Intel Turbo Boost Max 3.0 Technology

Chipset: intel H510

Form Factor: Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm

- Solid Capacitor design

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Supports Surge Protection

Memory

Type: Dual Channel DDR4 Memory Technology

Slots: 2 x DDR4 DIMM Slots

Supported Memory

- Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Supports Intel Extreme Memory Profile (XMP) 2.0

Maximum Memory: 64GB

Graphics

- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics

- Three graphics output options: D-Sub, DVI-D and HDMI**

- Supports Triple Monitor

- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports

Connector & Ports

HDMI: Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

D-Sub (s): Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

DVI-D (s): Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

USB (s)

Connector:

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O:

- 4 x USB 2.0 Ports (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

LAN Port (s)

- Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Intel I219V

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Supported Storage

- 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug

- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s

Audio

Connector:

- 1 x Front Panel Audio Connector

Rear Panel I/O:

- HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Ports

- 1 x COM Port Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

- 1 x Chassis Fan Connector (4-pin)

* The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.

- 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

TPM (Trusted Platform Module )

- 1 x SPI TPM Header

Manufacturing Warranty: 03 years warranty
