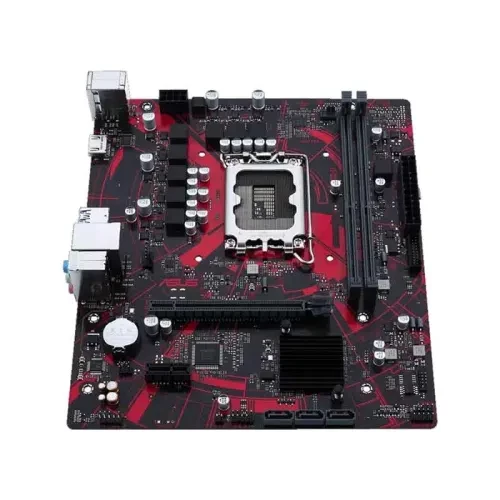

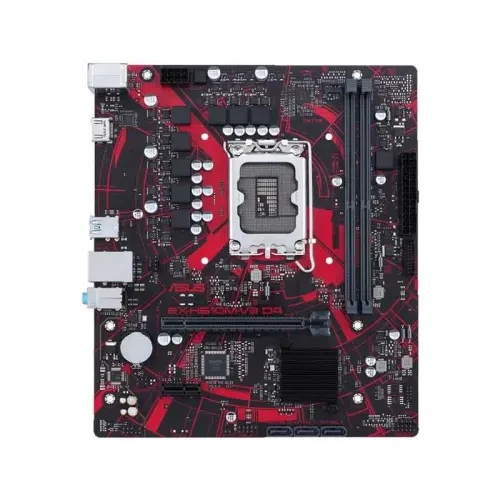

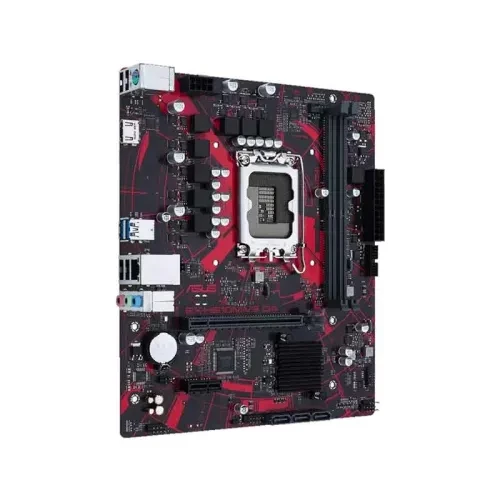

Asus EX-H610M-V3 D4 12th & 13th Gen mATX Motherboard

Specification
Basic Information

Supported CPU

• Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

• Intel H610 Chipset

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

• mATX Form Factor
• 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback"

Audio Features

• - Audio Shielding
• - Dedicated audio PCB layers

Expansion Slots

PCI

• Intel 13th & 12th Gen Processors
• 1 x PCIe 4.0 x16 slot
• Intel H610 Chipset
• 1 x PCIe 3.0 x1 slot

Memory

Type

• DDR4

Slots

• 2 x DIMM

Supported Memory

• 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)

Maximum Memory

• Max. 64GB

Graphics

Graphics

• 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
• 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)

Connector & Ports

HDMI

• 1 x HDMI port

USB (s)

• Rear USB (Total 6 ports)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 4 ports)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

LAN Port (s)

• 1 x Realtek 1Gb Ethernet port

Supported Storage

• Total supports 3 x SATA 6Gb/s ports
• Intel H610 Chipset
• 3 x SATA 6Gb/s ports

Audio

• 3 x Audio jacks

Internal I/O Ports

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header

Power related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 3 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Miscellaneous
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x Speaker header
• 1 x 10-1 pin System Panel header

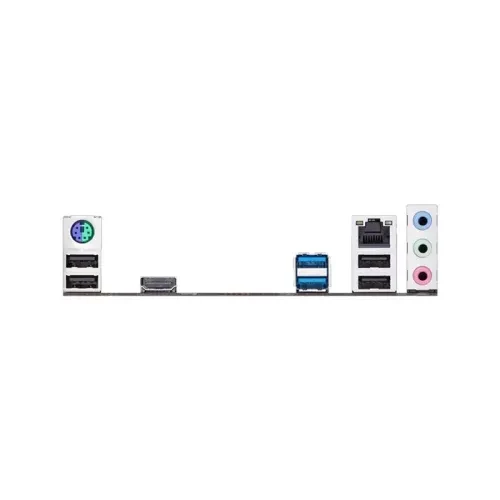

• Back Panel I/O Ports
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Others

Special Features

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• Non-stop Action
• - Lightning Boot
• Non-stop Challenger
• - ASUS iCafe labs certified
• Non-stop Durability
• - Anti-moisture coating
• - USBGuard

Warranty Information

Manufacturing Warranty

• 3 years warranty
