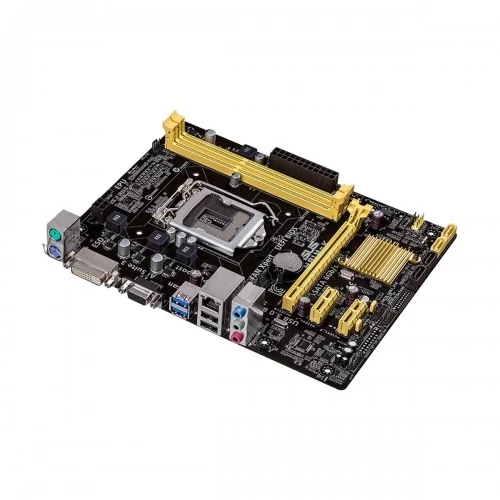

Asus H81M-K 4th Gen Motherboard

Basic Information

Supported CPU

• Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
• Supports Intel 22 nm CPU
• Supports Intel Turbo Boost Technology 2.0

Chipset

• Intel H81

BIOS

• 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Form Factor

• uATX Form Factor
• 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )

Audio

• Realtek ALC887/897 8-Channel High Definition Audio CODEC
• - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Expansion Slots

PCI

• 1 x PCIe x16
• 2 x PCIe 2.0 x1

Memory

Type

• DDR3

Slots

• 2 x DIMM

Supported Memory

• 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Maximum Memory

• Max. 16GB

Graphics

Graphics

• Integrated Graphics Processor
• Multi-VGA output support : DVI/RGB ports
• - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
• Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Max Shared Memory

• 1024 MB

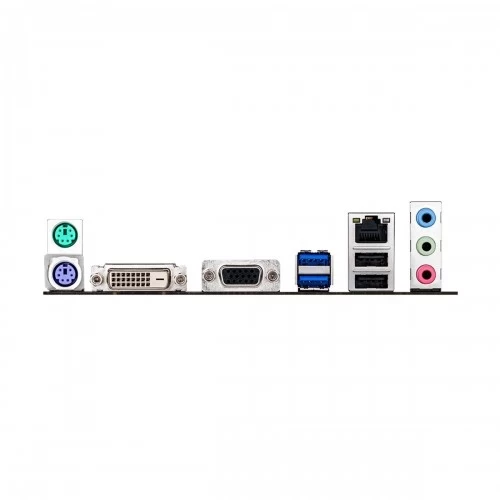

Connector & Ports

D-Sub (s)

• 1 x D-Sub

DVI-D (s)

• 1 x DVI

USB (s)

• Intel H81 chipset :
• 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
• Intel H81 chipset :
• 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

LAN Port (s)

• Realtek 8111G, 1 x Gigabit LAN Controller(s)

Supported Storage

• Intel H81 chipset :
• 2 x SATA 6Gb/s port(s), yellow,
• 2 x SATA 3Gb/s port(s), dark brown,
• Supports Intel Rapid Start Technology, Intel Smart Connect Technology

Audio

• 3 x Audio jack(s)

Internal I/O Ports

• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x SATA 6Gb/s connector(s)
• 2 x SATA 3Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x Clear CMOS jumper(s)

Others

Special Features

• ASUS EPU :
• - EPU
• ASUS Exclusive Features :
• - GPU Boost
• - AI Suite 3
• - Ai Charger
• - Anti-Surge
• - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• - Network iControl
• - USB 3.0 Boost
• - Disk Unlocker
• ASUS Quiet Thermal Solution :
• - Stylish Fanless Design Heat-sink solution
• - ASUS Fan Xpert
• ASUS EZ DIY :
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 2
• ASUS Q-Design :
• - ASUS Q-Slot

Warranty Information

Manufacturing Warranty

• 3 Years
