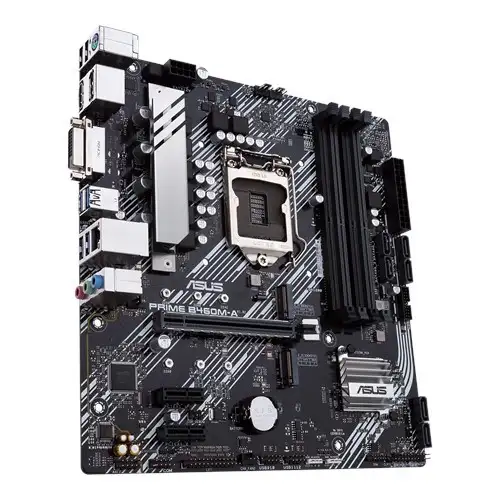

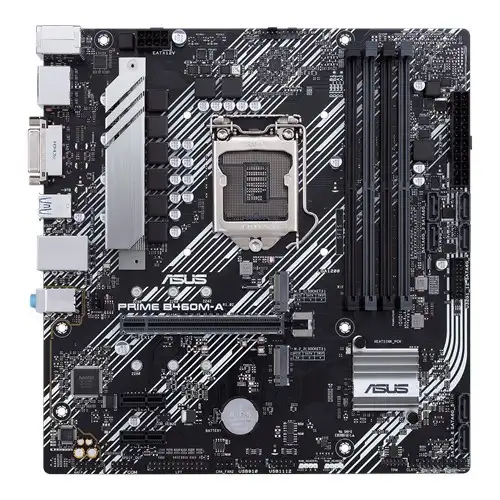

Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard

Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset: Intel B460
Form Factor: mATX Form Factor, 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
Expansion Slots
PCI: Intel 10th Gen Processors, 1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel B460 Chipset
2 x PCIe 3.0/2.0 x1
M.2 Socket: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
Slots: 4 x DIMM
Supported Memory: 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory: 128GB
Graphics
Integrated Graphics Processor- Intel® UHD Graphics support
1 x DisplayPort 1.4
1 x HDMI 1.4b
1 x DVI-D

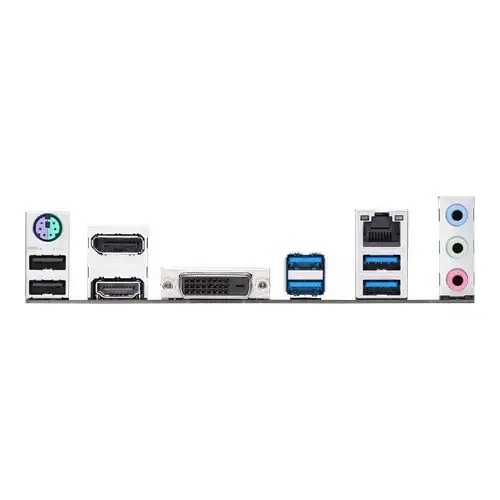

Connector & Ports
1 x HDMI 1.4b
1 x DisplayPort 1.4
1 x DVI-D
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)
LAN Port (s)
Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Supported Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports: Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x LPT header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
TPM (Trusted Platform Module )
1 x SPI TPM header
Manufacturing Warranty: 3 Years
