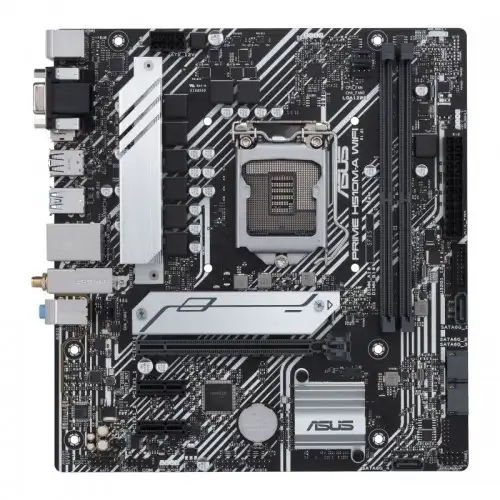

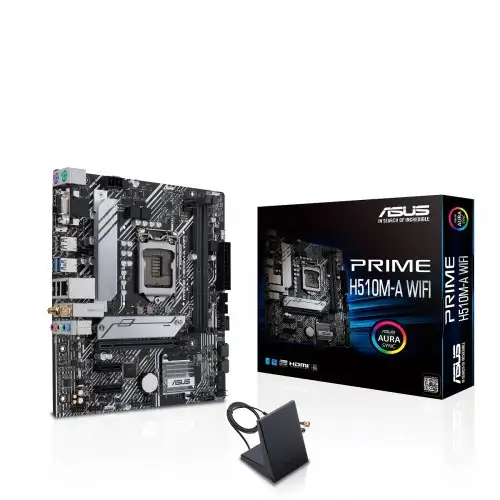

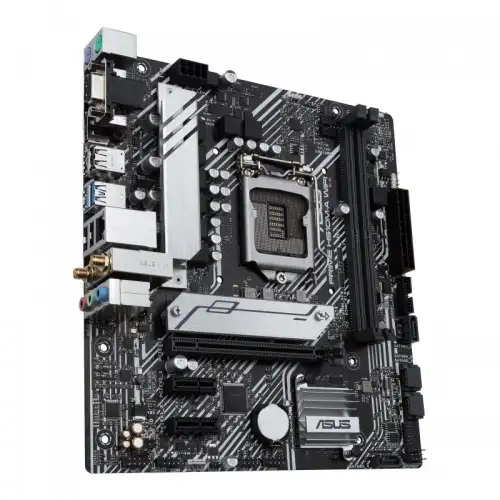

ASUS PRIME H510M-A Wi-Fi 10th and 11th Gen Micro ATX Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳11 400 /1

Cpu Socket:
Supported Ram BUS Speed:
Motherboard Manufacturer:
Motherboard Form Factor:
Motherboard Memory Technology:
Number of RAM Slots:
Quantity:

Total Price:

Phone  :  +8801891965674
Email  :  [email protected]
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:

Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset: Intel H510 Chipset
Form Factor: microATX: 22.6cm x 21.1cm
Expansion Slots
PCI: Intel 11th & 10th Gen Processors
1 x PCIe 4.0/ 3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel 10th Gen processors support PCIe 3.0 x16
Intel H510 Chipset
2 x PCIe 3.0 x1 slots
M.2 Socket: Intel H510 Chipset
M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type: DDR4
Slots: 2x DIMM
Supported Memory: 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz
11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively
3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory: 64GB
Graphics
1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 1.4 / 2.0
Connector & Ports
1 x HDMI 1.4 / 2.0
1 x DisplayPort 1.4

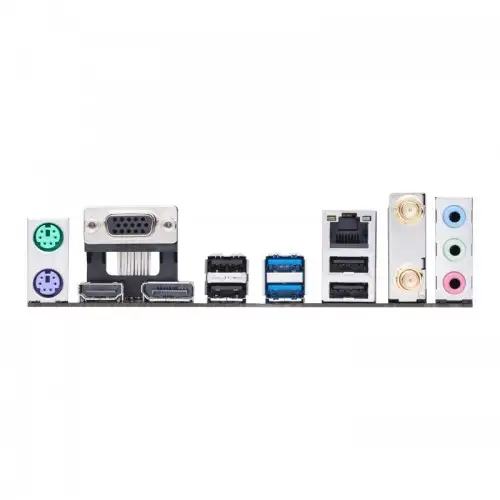

Rear USB: Total 6 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB: Total 5 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s)
1 x Intel I219-V 1Gb Ethernet
Wireless Communication module
Intel Wi-Fi 5 9462NGW
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth v5.1
Supported Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H510 Chipset:
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Audio
    Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Manufacturing Warranty: 03 Years
