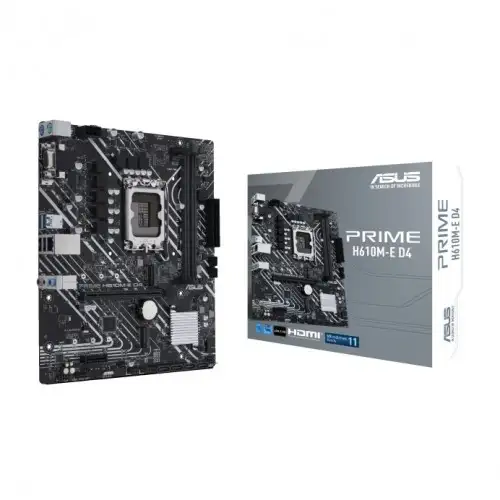

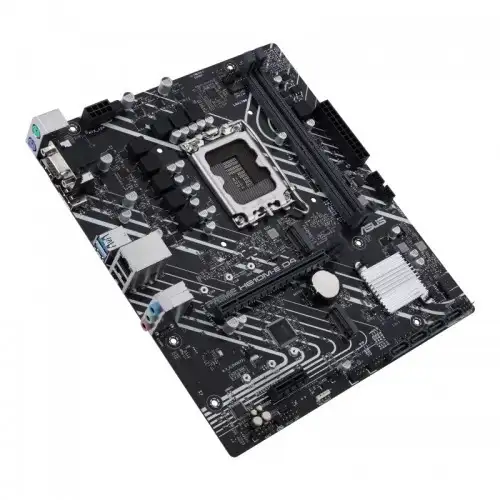

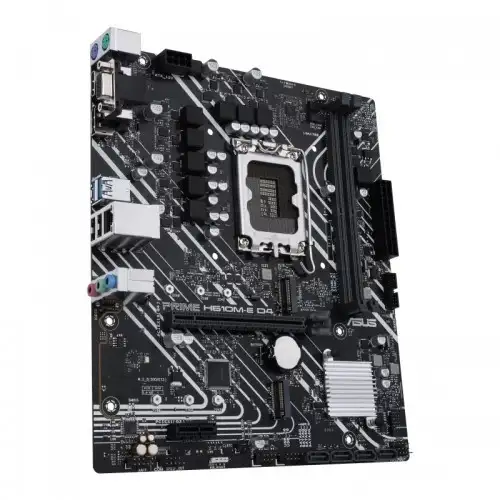

ASUS PRIME H610M-E D4 12th Gen mATX Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳10 700 /1

Cpu Socket:
Supported Ram BUS Speed:
Number of RAM Slots:
Motherboard Form Factor:
Motherboard Manufacturer:
Motherboard Memory Technology:
Product Condition:
Quantity:

Total Price:

Phone  :  +8801992298693, +8801891965674
Email  :  [email protected]
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:

Supported CPU: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset: Intel H610 Chipset
Form Factor: mATX Form Factor 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI: Intel 12th Gen Processors ,1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
Memory
Type: DDR4
Slott: 2 x DIMM
Supported Memory: DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory: 64GB
Graphics
1 x DisplayPort
1 x D-Sub port (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
1 x HDMI port
Display Port (s)
D-Sub (s)

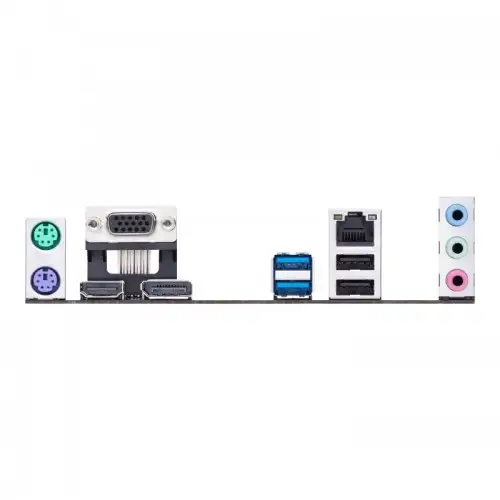

Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Realtek 1Gb Ethernet
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
 1 x SPI TPM header (14-1pin)
Manufacturing Warranty: 3 years

There have been no reviews for this product yet.
