ASUS PRIME H610M-K D4-SI 12th Gen mATX Motherboard (Commercial Edition)

(0 reviews)

Sold by:
Inhouse product

Price:
৳10 100 /1

Cpu Socket:
Memory Type:
Supported Ram BUS Speed:
Motherboard Manufacturer:
Number of RAM Slots:
Product Condition:
Quantity:
(40 available)

Total Price:

Phone  :  +8801992298693, +8801891965674
Email  :  [email protected]
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:
Specification
Basic Information

Supported CPU

  • Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

  • Intel H610 Chipset

BIOS

  • 128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

  • mATX Form Factor
  • 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback

Audio Features

  • - Audio Shielding
  • - Dedicated audio PCB layers
Expansion Slots

PCI

  • Intel 12th Gen Processors
  • 1 x PCIe 4.0 x16 slot
  • Intel H610 Chipset
  • 1 x PCIe 3.0 x1 slot
Memory

Type

  • DDR4

Slots

  • 2 x DIMM
  • Supported Memory
  • 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)

Maximum Memory

  • 64GB
Graphics

Graphics

  • 1 x D-Sub port (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
  • 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)

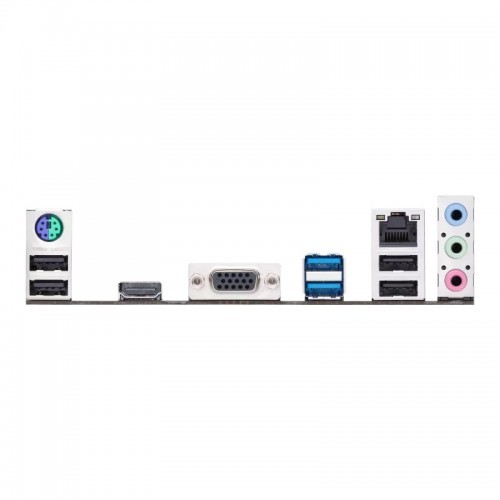

Connector & Ports

HDMI

  • 1 x HDMI port

D-Sub (s)

  • 1 x D-Sub port

USB (s)

  • Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 4 ports)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
  • LAN Port (s)
  • 1 x Realtek 1Gb Ethernet

Supported Storage

  • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Intel H610 Chipset
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports

Audio

  • 3 x Audio jacks

Internal I/O Ports

  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
  • Miscellaneous
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x 10-1 pin System Panel header

TPM (Trusted Platform Module )

  • 1 x SPI TPM header (14-1pin)
Others

Special Features

  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-Slot
  • ASUS Thermal Solution
  • - Aluminum heatsink design
  • ASUS Lighting Control
  • - RGB header
  • Bundled Software
  • ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
  • - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • Fan Xpert
  • ASUS CPU-Z
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
Warranty Information

Manufacturing Warranty

  • 3 years
There have been no reviews for this product yet.
