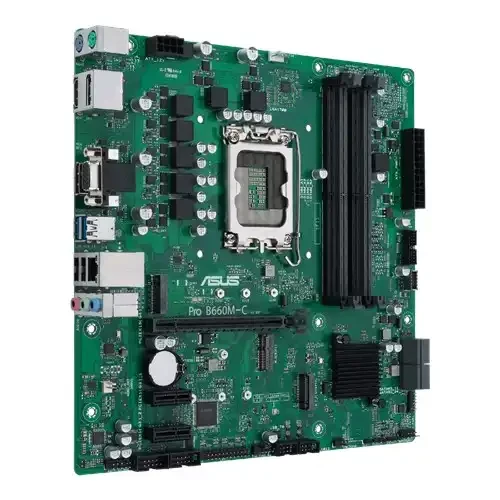

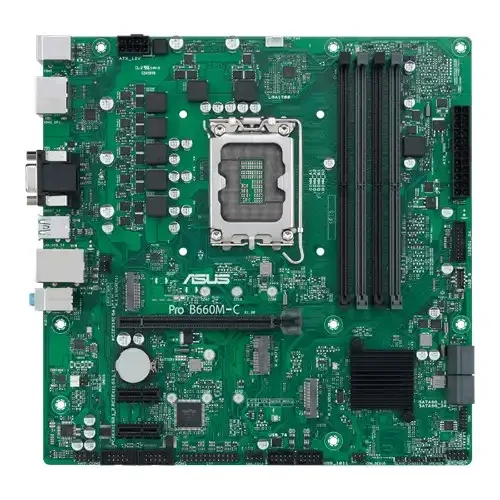

ASUS Pro B660M-C-CSM DDR5 12th Gen mATX Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳19 800 /1

Memory Type:
Supported Ram BUS Speed:
Cpu Socket:
Motherboard Manufacturer:
Number of RAM Slots:
Product Condition:
Quantity:
(0 available)

Total Price:

Phone  :  +8801891965674
Email  :  info@systembuilder.com.bd
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:
Specification
Basic Information

Supported CPU

  • Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

  • Intel B660 Chipset

BIOS

  • 128Mb Flash ROM
Form Factor

microATX

  • 24.4cm x 24.4cm

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback "
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots

PCI

  • Intel 12th Gen Processors
  • 1 x PCIe 4.0/3.0 x16 slot
  • Intel B660 Chipset
  • 2 x PCIe 3.0 x1 slots
Memory

Type

  • DDR5

Slots

  • 4 x DIMM slots

Supported Memory

  • 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • Optimem

Maximum Memory

  • 128GB
Graphics

Graphics

  • 2 x DisplayPort**
  • 1 x D-Sub port
  • 1 x HDMI port
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports

HDMI

  • 1 x HDMI

Display Port (s)

  • 2 x DisplayPort

D-Sub (s)

  • 1 x D-Sub

USB (s)

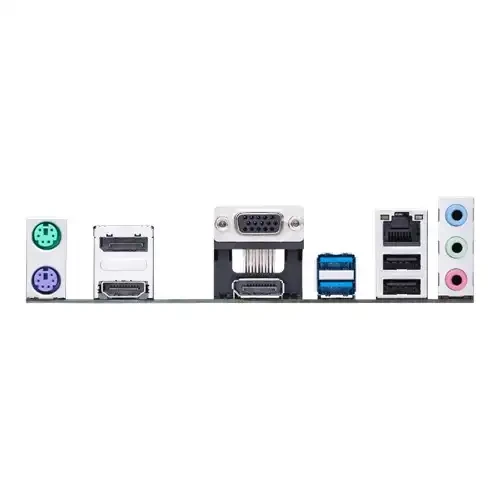

  • Rear USB (Total 4 ports)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

LAN Port (s)

  • 1 x Intel 1Gb Ethernet
  • ASUS LANGuard
  • Wireless Communication module
  • M.2 slot only (Key E, CNVi & PCIe)
  • *Wi-Fi module is sold separately.

Supported Storage

  • Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280
  • - Intel 12th Gen processors support PCIe 4.0 x4 mode
  • Intel B660 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
  • 4 x SATA 6Gb/s ports
  • * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
  • ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Audio

  • 3 x Audio jacks

Internal I/O Ports

  • Fan and cooling related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

  • 1 x Clear CMOS header
  • 1 x Chassis Intrude header
  • 2 x COM Port headers
  • 1 x Front Panel Audio header (AAFP)
  • 1 x COM debug header
  • 1 x LPT header
  • 1 x Mono-out header(with Amp IC)
  • 1 x M.2 slot (Key E)
  • 1 x SMBUS header
  • 1 x Speaker header
  • 1 x 10-1 pin System Panel header
Others

Special Features

  • ASUS EZ DIY
  • - Box Headers
  • Bespoke Motherboard Design & Business Focused Features
  • - Q-LED Core
  • - ASUS Self Recovering BIOS
  • - ASUS Event Log
  • - ASUS Commercial BIOS kit
  • - Anti-Moisture
  • - 24/7 Reliability
  • - Overcurrent Protection
  • TPM IC onboard
  • Bundled Software
  • ASUS Exclusive Software
  • IT Management software supported
  • - ASUS Control Center Express(ACCE)
Warranty Information

Manufacturing Warranty

  • 3 Years
