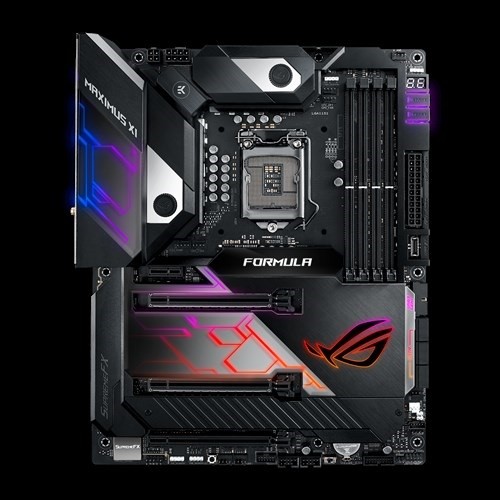

Asus ROG MAXIMUS XI FORMULA 9th Gen Motherboard (Used)

Top Selling Products

Corsair Vengeance LPX 8GB 3200MHz DDR4 Desktop RAM (Used)

৳2 200
Corsair Vengeance LPX 8GB 2400MHz DDR4 Desktop RAM (Used)

৳2 000
AMD Ryzen 5 5600G 6 Cores 12 Threads Processor with Radeon Graphics

৳12 800
Intel DC S3700 400GB 2.5 Inch SATA SSD (Used)

৳3 500
AMD Ryzen 5 3600 6 Cores 12 Threads Processor (Used)

৳6 000
Seagate Internal 1TB SATA Barracuda HDD (Used)

৳1 800

Description reviews

Specification

Basic Information
Supported CPU	Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset	Intel® Z390
Expansion Slots
PCI	Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors 2 x PCIe 3.0 x16 Intel® Z390 Chipset 1 x PCIe 3.0 x16 (max at x4 mode) * 1 x PCIe 3.0/2.0 x1
M.2 Socket	1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) Intel® Optane™ Memory Ready
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory	64GB
Graphics
Graphics	VGA output support : HDMI port - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz / x @ Hz
Connector & Ports
HDMI	1 X HDMI
USB (s)	Intel® Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) Intel® Z390 Chipset : 4 x USB 2.0 port(s) ASMedia® USB 3.1 Gen 1 controller : 2 x USB 3.1 Gen 1 port(s)
LAN Port (s)	Aquantia AQC111C 5G LAN Intel® I219V Anti-surge LANGuard ROG GameFirst V Technology
Supported Storage	Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) Intel® Optane™ Memory Ready
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback *3 Audio Feature : - Optical S/PDIF out port(s) at back panel
Internal I/O Ports	2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 1 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x Node Connector(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x USB 3.1 Gen 2 front panel connector 2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x Start button 1 x Reset button 1 x Q-Code
