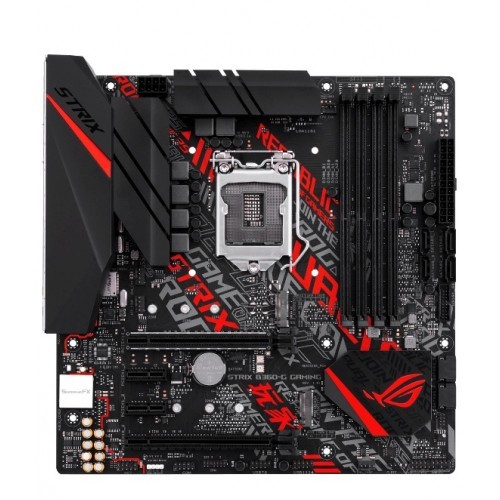

Asus ROG STRIX B360-G Gaming 8th Gen Motherboard (Used)

Specification

Basic Information

Supported CPU

Intel® for 8th Generation Core™ Processors

Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® B360

BIOS

1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI

6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan

Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS

DRAM SPD (Serial Presence Detect) memory information, ASUS Secure

Erase, ASUS User Profile, F4 AURA ON/OFF, F9 Search

Form Factor

mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Expansion Slots

PCI

1 x PCIe 3.0 x16

1 x PCIe 3.0 x16 (max at x4 mode)

2 x PCIe 3.0/2.0 x1

M.2 Socket

1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

1 x TPM header

Memory Type

Dual Channel Memory Architecture

Slots

4 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Supported Memory

Supports Intel® Extreme Memory Profile (XMP)

DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Maximum Memory

64GB

Graphics

Supports AMD 2-Way CrossFireX Technology

Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz

Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Connector & Ports

HDMI

1 x HDMI

Display Port (s)

1 x DVI

USB (s)

2 x USB 3.1 Gen 2

LAN Port (s)

Anti-surge LAN (RJ45) port

Supported Storage

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)

6 x SATA 6Gb/s port(s)

Intel® Optane™ Memory Ready *

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB (Line-out at rear) 113 dB SNR recording input

Audio Feature :

- SupremeFX Shielding™ Technology

- Optical S/PDIF out port(s) at back panel

- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Sonic Radar III

- Sonic Studio III + Sonic Studio Link

Internal I/O Ports

1 x AAFP connector

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

1 x TPM header

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

2 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel connector(s)

1 x Clear CMOS jumper(s)

Warranty Information

No Warranty
