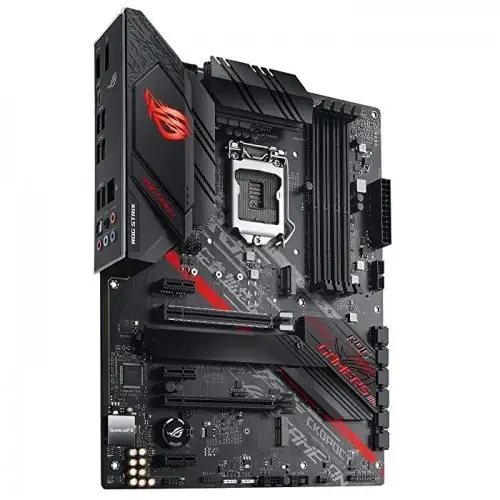

Motherboard
Supported CPU: Intel Socket 1200 For 10th Gen Intel Core, Pentium Gold And Celeron Processors Supports Intel 14 Nm CPU Supports Intel Turbo Boost Technology 2.0 And Intel Turbo Boost Max Technology 3.0
Chipset Intel B460
Memory Type: Dual Channel Memory Architecture Slots 4 X DIMM Supported Memory 2933/2800/2666/2400/2133 MHz Non-ECC, Un-Buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem Maximum Mamory 128GB
Graphics: Integrated Graphics Processor 1 X DisplayPort 1.4 1 X HDMI 1.4b Supports AMD 2-Way CrossFireX Technology
Slots: PCI Intel 10th Gen Processors 1 X PCIe 3.0/2.0 X16 (X16 Mode) Intel B460 Chipset 2 X PCIe 3.0/2.0 X1 M.2 Socket 1 X M.2_1 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (Both SATA & PCIE Mode) 1 X M.2_2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (PCIE 3.0 X 4 Mode)
Supported Storage: Total Supports 2 X M.2 Slots And 6 X SATA 6Gb/S Ports Intel® B460 Chipset : 1 X M.2_1 Socket 3, With M Key, Type 2242/2260/2280 (PCIE 3.0 X4 And SATA Modes) Storage Devices Support 1 X M.2_2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (PCIE 3.0 X 4 Mode) 6 X SATA 6Gb/S Port(S) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready
LAN Intel I219-V 1Gb Ethernet ASUS LANGuard
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance Sense For Front And Rear Headphone Outputs - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - High Quality 120 DB SNR Stereo Playback Output And 113 DB SNR Recording Input - Supports Up To 32-Bit/192kHz Playback Audio Feature : - SupremeFX Shielding Technology - Rear Audio USB Type-C Port - Premium Japanese Audio Capacitors - Audio Cover

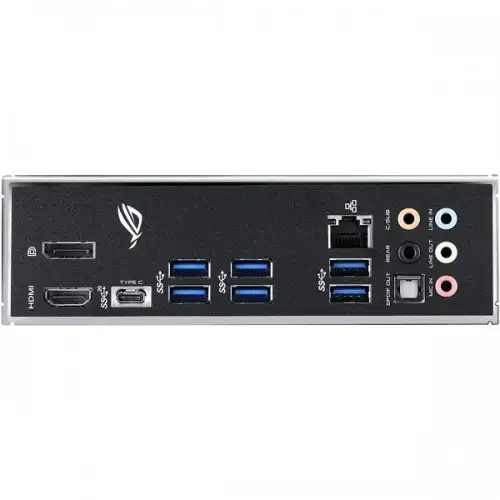

USB Port Rear USB Port ( Total 8 ) 1 X USB 3.2 Gen 2x2 Port(S)(1 X USB Type-C) 6 X USB 3.2 Gen 1 Port(S)(6 X Type-A) 1 X USB 2.0 Port(S)(1 X USB Type-C) Front USB Port ( Total 6 ) 2 X USB 3.2 Gen 1 Port(S) 4 X USB 2.0 Port(S)
Internal I/O Ports: 1 X CPU Fan Connector(S) 2 X Chassis Fan Connector(S) 1 X AIO_PUMP Connector 1 X Addressable RGB Header 1 X AAFP Connector 1 X Aura RGB Strip Headers 1 X USB 3.2 Gen 1(Up To 5Gbps) Connector(S) Support(S) Additional 2 USB 3.2 Gen 1 Port(S) 2 X USB 2.0 Connector(S) Support(S) Additional 4 USB 2.0 Port(S) 2 X M.2 Socket 3 1 X M.2 With E Key For Wi-Fi Module 1 X COM Port(S) Connector(S) 6 X SATA 6Gb/S Connector(S) 1 X S/PDIF Out Header(S) 1 X 24-Pin EATX Power Connector(S) 1 X 8-Pin ATX 12V Power Connector(S) 1 X Clear CMOS Jumper(S) 1 X System Panel Connector
Form Factor : MATX Form Factor 9.6 Inch X 9.6 Inch ( 24.4 Cm X 24.4 Cm )
HDMI : 1 X HDMI 1.4b
Warranty: No Warranty
