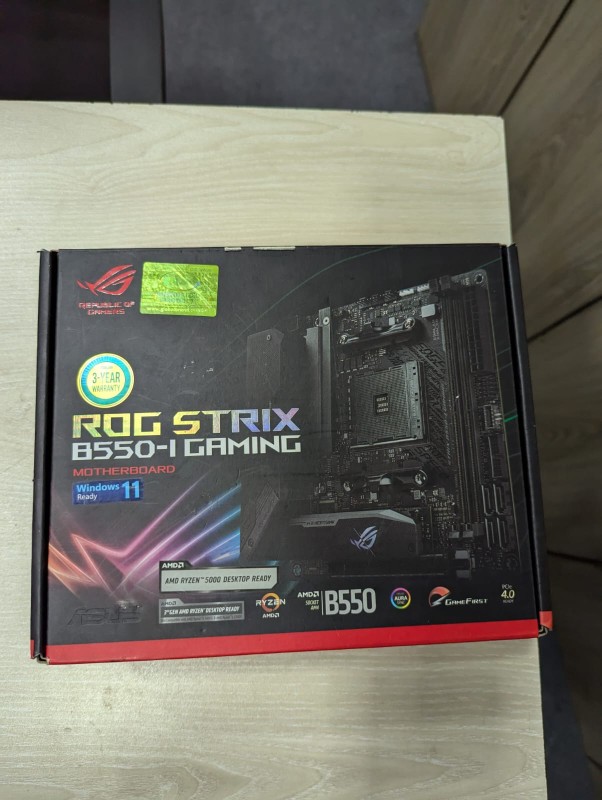

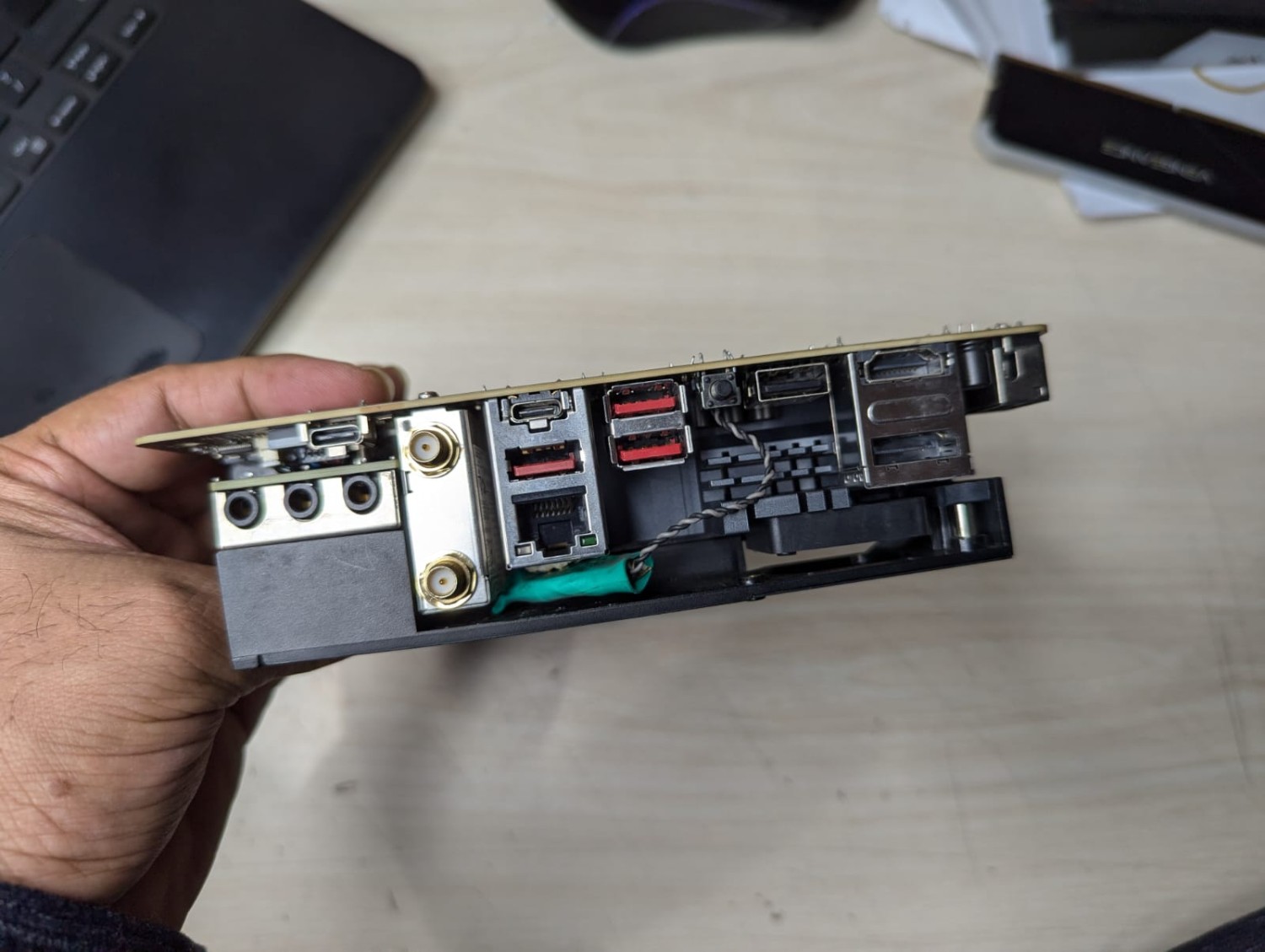

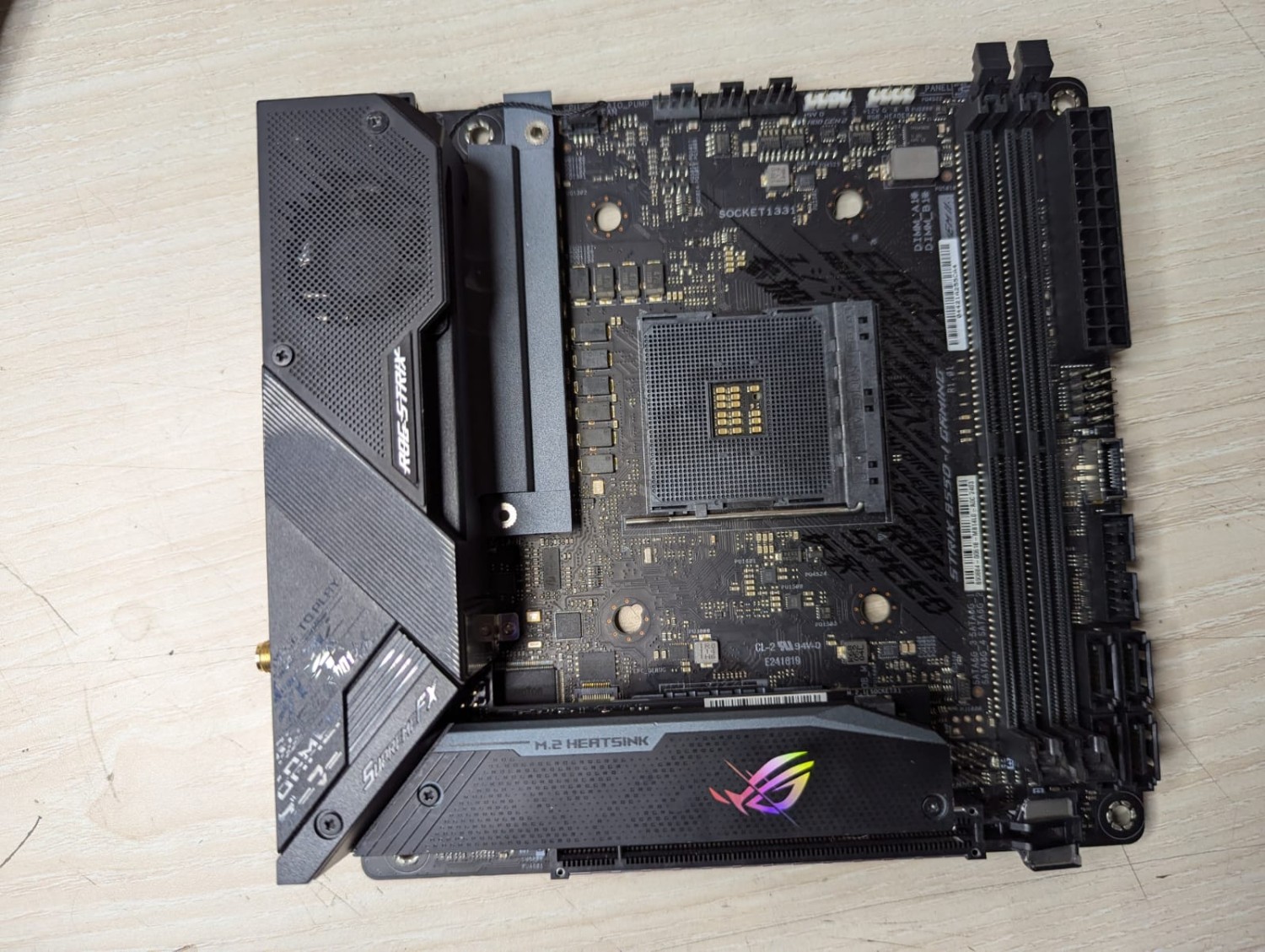

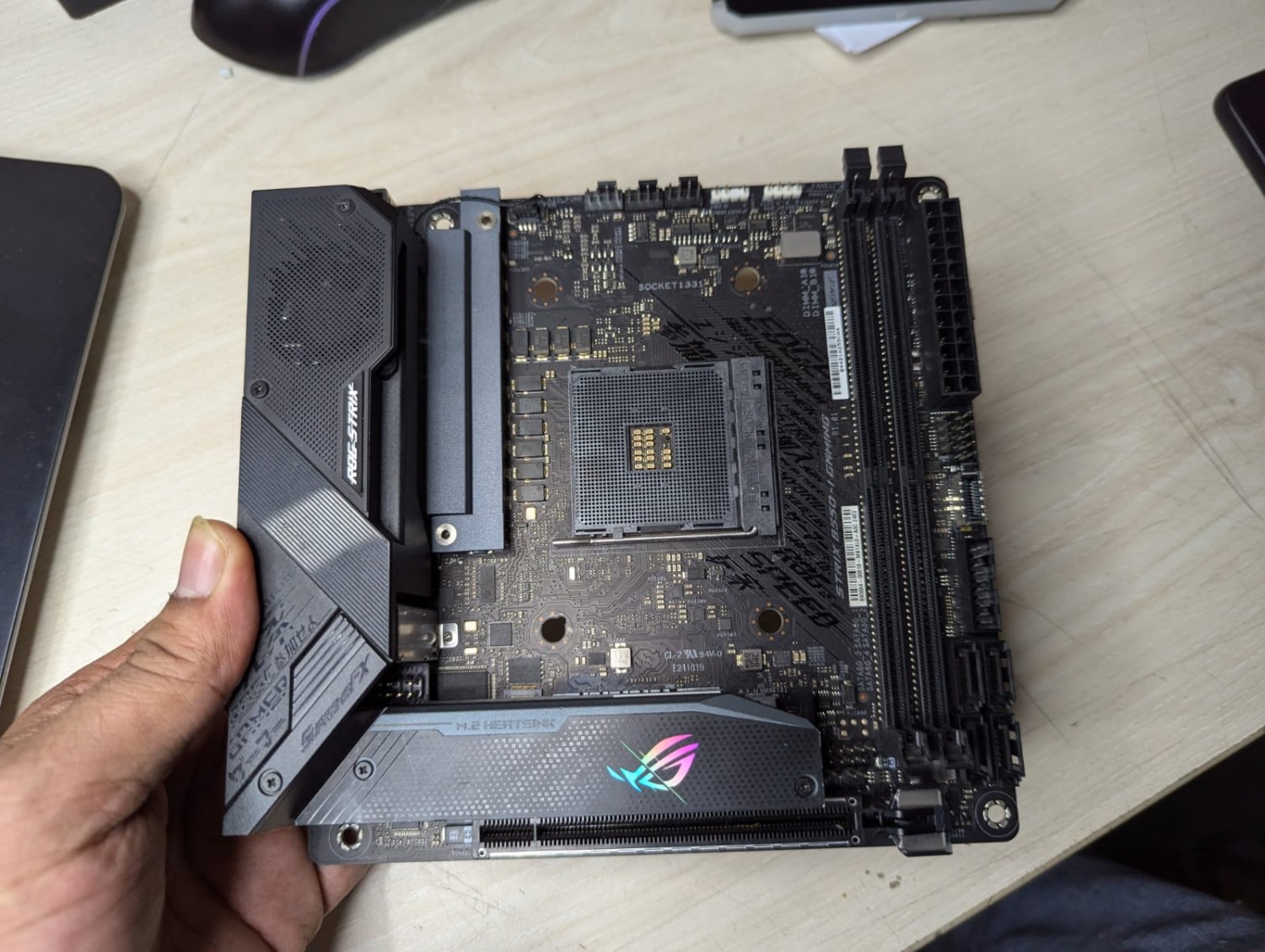

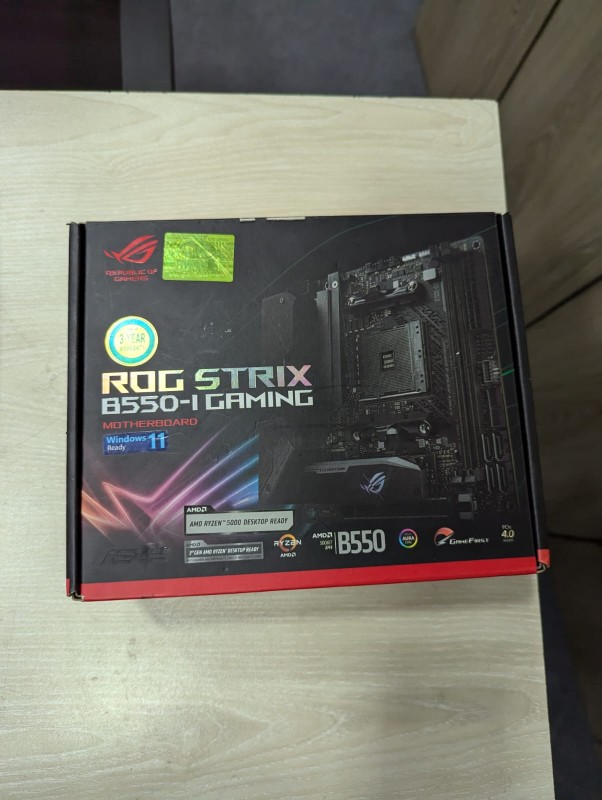

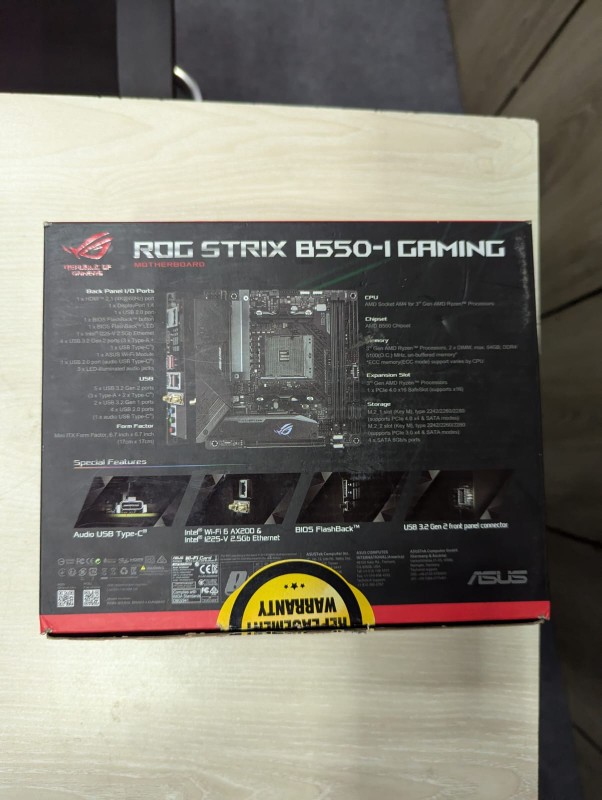

ASUS ROG STRIX B550-I GAMING Motherboard (Used)

Top Selling Products

Corsair Vengeance LPX 8GB 3200MHz DDR4 Desktop RAM (Used)

৳2 200
Corsair Vengeance LPX 8GB 2400MHz DDR4 Desktop RAM (Used)

৳2 000
AMD Ryzen 5 5600G 6 Cores 12 Threads Processor with Radeon Graphics

৳12 800
Intel DC S3700 400GB 2.5 Inch SATA SSD (Used)

৳3 500
Seagate Internal 1TB SATA Barracuda HDD (Used)

৳1 800
AMD Ryzen 5 3600 6 Cores 12 Threads Processor (Used)

৳7 000

Description reviews

Generel information
CPU	AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Graphic	1 x HDMI 2.1(4K@60HZ) * 1 x DisplayPort 1.4 *
Memory	AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors 2 x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/ 4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.) /3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory * OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Storage	AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
USB Ports	4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C® +3 x Type-A) 1 x USB 2.0 port(s)(1 x audio USB Type-C® ) Front USB Port ( Total 5 ) 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®) Rear USB Port ( Total 6 ) 1 x USB 2.0 port(s) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s)
Wireless Data Network	2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Intel Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160
Main Features
Audio	SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A - Rear audio USB Type-C® port - LED-illuminated design - Audio Shielding - Premium Japanese audio capacitors - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback *
Chipset	AMD B550
Form Factor	Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Connector & ports
Internal I/O Ports	1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x VRM_HS_FAN Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector ASUS ROG STRIX B550-I GAMING Motherboard Give your space-saving gaming rig big potential with the Republic of Gamers ASUS ROG STRIX B550-I AM4 Mini-ITX Motherboard from ASUS. Designed for small form factor AMD gaming rigs, this mini-ITX board uses the B550 chipset and supports AM4 sockets. Supporting up to 64GB of dual-channel DDR4 RAM between two DIMMs, this board is compatible with frequencies up to 3200 MHz, or 5100 MHz when overclocked. ECC memory is supported, depending on the particular CPU installed on the board. A GPU can be installed via the PCIe 4.0 x16 slot, and storage options include four SATA III ports and two M.2 sockets, with one supporting PCIe 4.0 X4 drives and the other supporting PCIe 3.0 x4 drives. Both of these M.2 slots accept 2242-, 2260-, and 2280-sized drives. ASUS ROG STRIX B550-I GAMING Motherboard Features: AMD AM4 Socket and PCIe 4. 0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs Robust Power Design: 8+2 Dr MOS power stages with high-quality alloy chokes and durable capacitors provide reliable power for the latest high-core-count AMD CPUs Optimized Thermal Solution: VRM and PCH heatsinks with ASUS Stack Cool 3+ design keep your system running reliably under heavy load by enhancing passive cooling capacity for critical onboard components. High-performance Gaming Networking: On-board WIFI 6 (802.11ax), Bluetooth V5.1 and 2.5 Gb LAN with ASUS LAN Guard Best Gaming Connectivity: Supports HDMI 2.1 (4K@60HZ) and DisplayPort 1.2 output, featuring dual M.2 slots (NVMe SSD)—one with PCIe 4.0 x4 connectivity, USB 3.2 Gen 2 front panel Type-C connector, USB 3.2 Gen 2 Type-C port Industry-leading Gaming Audio & AI Noise Cancelling Mic Technology: High fidelity audio from a Supreme FX S1220A codec with DTS Sound Unbound and Sonic Studio III draws you deeper into the action. Communicate clearly with ASUS AI Noise Cancelling Mic technology. Unmatched Personalization: Mini-ITX form factor, ASUS-exclusive Aura Sync RGB lighting, including RGB header and addressable Gen 2 RGB header for greater customization Please ensure your BIOS is up to date if installing a compatible Ryzen 5000 series CPU. Visit ASUS site search by motherboard model name, click on “Support” tab, Drivers and Tools, then BIOS & Firmware to download the latest BIOS.
