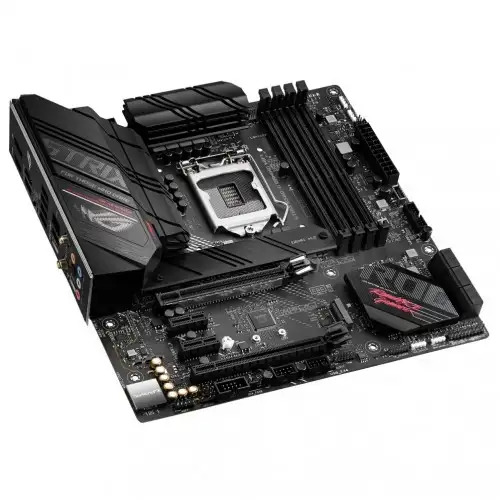

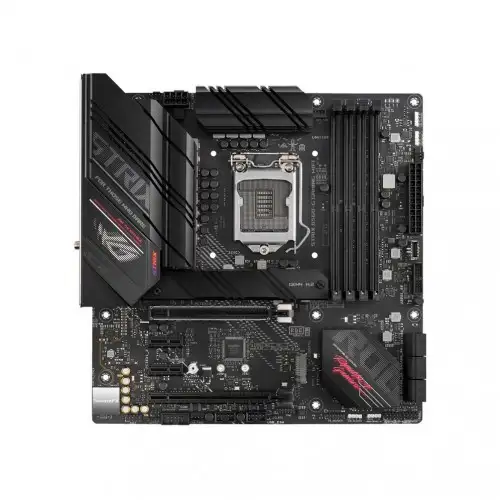

ASUS ROG STRIX B560-G GAMING WI-FI 10th and 11th Gen Micro ATX Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳19 100 /1

Supported Ram BUS Speed:
Cpu Socket:
Number of RAM Slots:
Motherboard Manufacturer:
Motherboard Form Factor:
Motherboard Memory Technology:
Quantity:

Total Price:

Phone  :  +8801891965674
Email  :  [email protected]
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:
Basic Information
Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset: Intel B560 Chipset
Form Factor: microATX 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio    ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear audio USB Type-C® port
- Premium Japanese audio capacitors
- Audio cover
Expansion Slots
PCI: Intel 11th &10th Gen Processors:
1 x PCIe 4.0/3.0 x16 slot(s)
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel10th Gen processors support PCIe 3.0 x16
Intel B560 Chipset:
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
M.2 Socket    M.2_1 slot (Key M), type 2242/2260/2280/22110
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type: DDR4
Slots: 4 x DDR4 (Dual channel)
Supported Memory: 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory: 128GB
Graphics
1 x DisplayPort 1.4
1 x HDMI 1.4 / 2.0
Connector & Ports
1 x HDMI port
1 x DisplayPort
Rear USB:
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
1 x USB 3.2 Gen 2 port(s)
(1 x Type-A)
7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C)
Front USB:
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s)    TUF LANGuard
Wireless Communication module    Intel Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.0 or later
Supported Storage    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports
Audio    5 x Audio jacks
Internal I/O Ports    1 x TB Header (for add-on TB card)
1 x Thunderbolt header

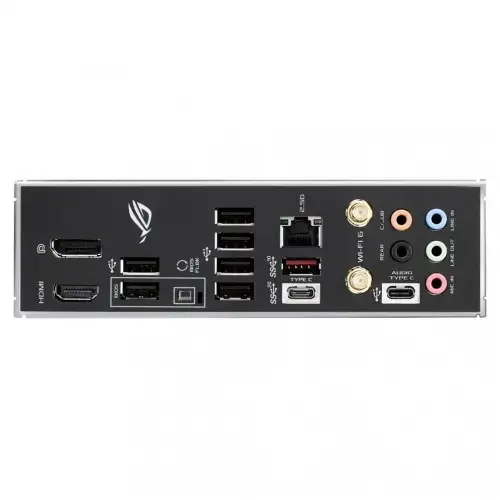

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C)
1 x HDMI port
1 x DisplayPort
1 x ASUS Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button
Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
2 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header(s)
2 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM port
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
1 x S/PDIF Out header
TPM (Trusted Platform Module )    1 x SPI TPM header (14-1pin)
Manufacturing Warranty: 03 Years Warranty
