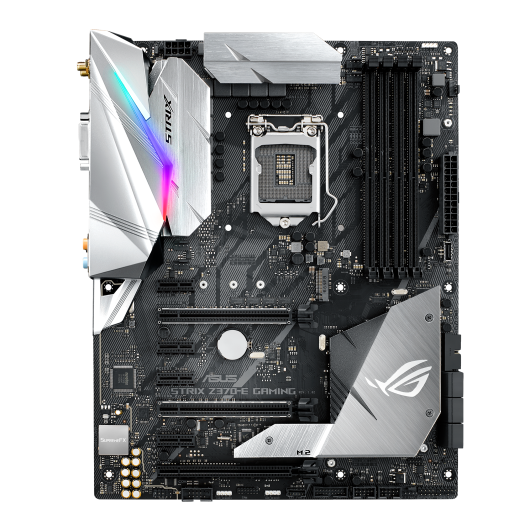

Asus Rog Strix Z370-E Gaming ATX Motherboard (Used)

Specification

Motherboard

Chipset : Intel® Z370

Supported Processors

Intel® Socket 1151 for 8th Generation Core™ Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Max Memory

4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)

/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)

/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Onboard Video

Intel® Z370 Chipset :

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*3

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Ready *4

Onboard Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

- Dual Headphone Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- SupremeFX Shielding Technology

- Supports up to 32-Bit/192kHz playback *5

Audio Feature :

- SupremeFX Shielding™ Technology

- Optical S/PDIF out port(s) at back panel

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Sonic Radar III

- Sonic Studio III

Onboard LAN

Intel® I219V

Anti-surge LANGuard

ROG GameFirst Technology
