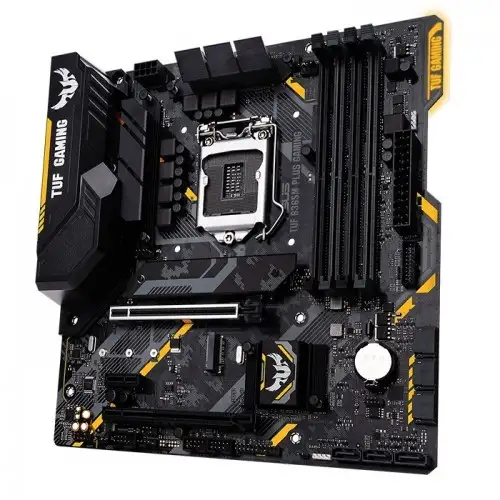

Asus TUF B365M-Plus Gaming LGA1151 9TH Gen Micro ATX Motherboard (Used)

Basic Information

Supported CPU: Intel Socket 1151 9th / 8th Gen Intel® Core, Pentium Gold and Celeron Processors

Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0

Chipset: Intel B365

BIOS: 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial

Form Factor: mATX Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm )

Expansion Slots

1 x PCIe 3.0 x16 (x16 mode)

1 x PCIe 3.0 x16 (max at x4 mode)

1 x PCIe 3.0/2.0 x1

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

Memory

Memory Type: Dual Channel Memory Architecture

Slots: 4 x DIMM DDR4

Supported Memory: DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors

Maximum Memory: 64GB

Graphics

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/DisplayPort ports

Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Supports AMD CrossFireX Technology

Supports up to 3 displays simultaneously

Max Shared Memory: Maximum shared memory of 1024 MB (for iGPU exclusively)

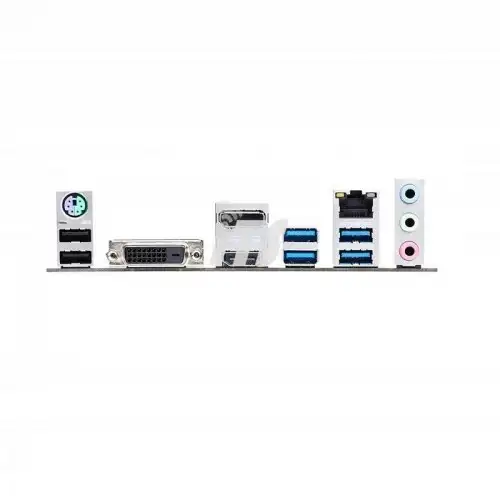

Connector & Ports

1 x HDMI resolution 4096 x 2160 @ 30 Hz

Display Port (s)

1 x DisplayPort 1.2 resolution 4096 x 2304 @ 60 Hz

1 x DVI-D resolution 1920 x 1200 @ 60 Hz

6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)

Intel B365 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

LAN Port (s): Intel I219V, 1 x Gigabit LAN

TUF LANGuard

Supported Storage

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s), gray

Support Raid 0, 1, 5, 10

Intel Optane Memory Ready

Audio

Realtek ALC1200 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Internal I/O Ports

1 x Addressable RGB header

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

2 x Chassis Fan connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

Warranty Information

Manufacturing Warranty: No
