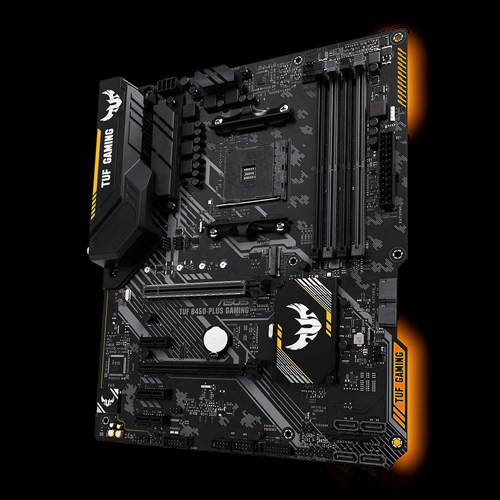

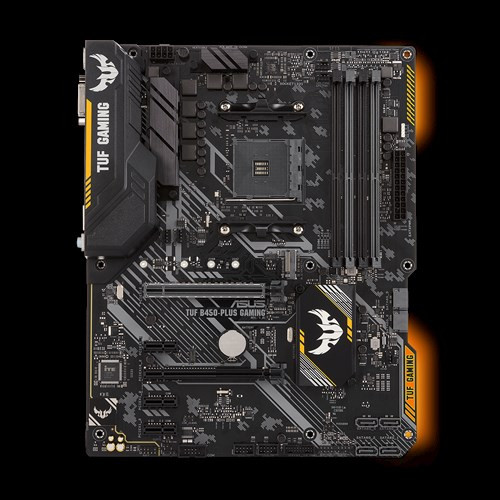

Asus TUF B450 PLUS GAMING AMD ATX Motherboard (Used)

Specification

Basic Information

Supported CPU

AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors

Supports CPU up to 8 cores

Chipset : AMD B450

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

Form Factor

ATX Form Factor

12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Expansion Slots

PCI

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors

1 x PCIe 3.0/2.0 x16 (x16 mode)

AMD Ryzen™ with Radeon™ Vega Graphics Processor

1 x PCIe 3.0/2.0 x16 (x8 mode)

AMD Athlon™ with Radeon™ Vega Graphics Processors

1 x PCIe 3.0/2.0 x16 (x4 mode)

AMD B450 chipset

1 x PCIe 2.0 x16 (max at x4 mode)

3 x PCIe 2.0 x1

M.2 Socket

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

Memory Type

Dual Channel DDR4 Memory Technology

Slots

4 x DIMM

Supported Memory

DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Maximum Memory

64 GB

Graphics

Graphics

Multi-VGA output support : HDMI/DVI-D ports

- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

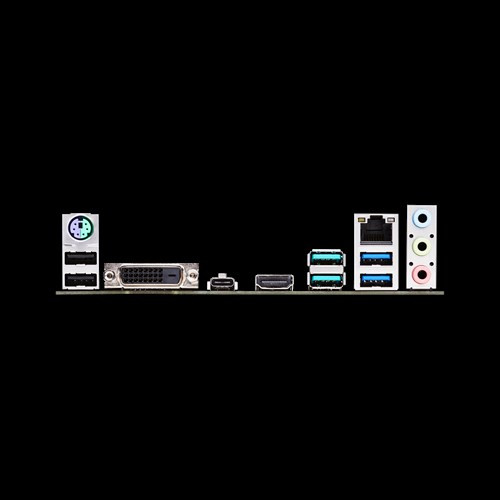

Connector & Ports

HDMI

1 x HDMI port

DVI-D (s)

1 xDVI-D

USB (s)

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)

AMD B450 chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)

AMD B450 chipset :

2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

AMD B450 chipset :

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

LAN Port (s)

Realtek® RTL8111H

TUF LANGuard

Supported Storage

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1

AMD Athlon™ with Radeon™ Vega Graphics Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

2 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

AMD B450 chipset :

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

Audio

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2

Audio Feature :

- Exclusive DTS Custom for GAMING Headsets.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

Internal I/O Ports

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)
