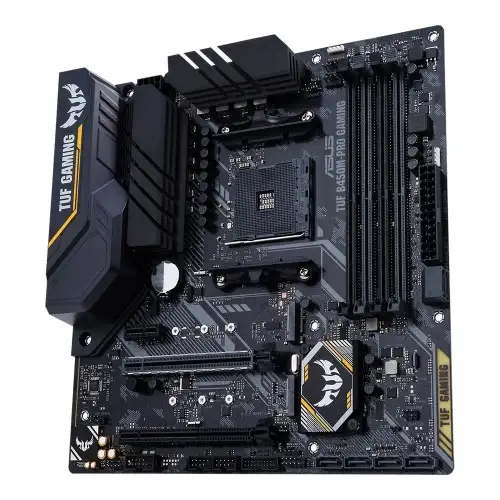

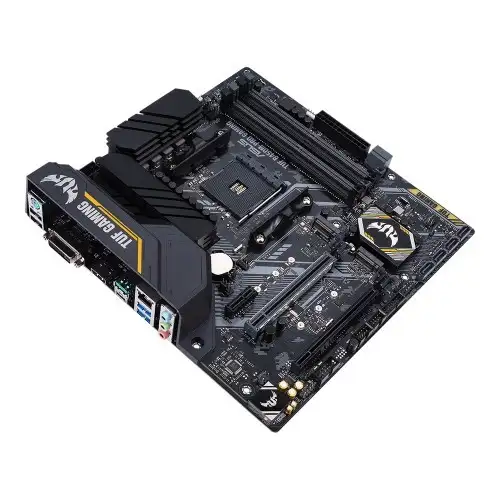

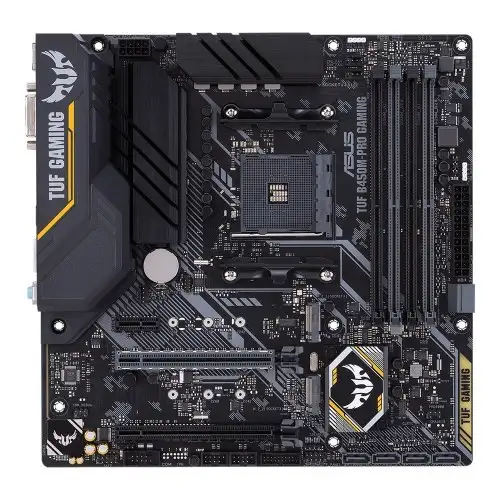

Asus TUF B450M-PRO GAMING AMD AM4 mATX Motherboard (Used)

Basic Information

Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

Chipset: AMD B450

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite,Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

1 x PCIe 3.0/2.0 x16 (x8 mode)

AMD Athlon with Radeon Vega Graphics Processors

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

AMD B450 chipset

1 x PCIe 2.0 x16 (max at x4 mode)

1 x PCIe 2.0 x1

Memory

Type: DDR4

Slots: 4 x DIMM

Supported Memory: 4400(O.C)/ 3533(O.C)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU

Maximum Memory: Max. 128GB

Graphics

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

Multi-VGA output support: HDMI/DVI-D ports

- Supports HDMI 2.0b with a maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

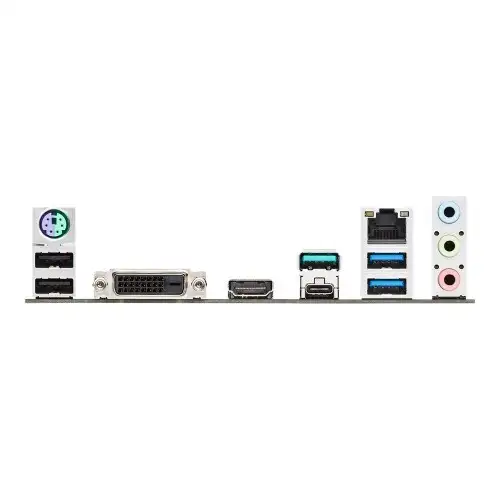

Connector & Ports

HDMI: 1 x HDMI

DVI-D (s): 1 x DVI-D

USB (s): 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors :

2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)

3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors :

1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)

AMD B450 chipset : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, )

AMD B450 chipset :: 2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

LAN Port (s): Realtek RTL8111H TUF LANGuard

Supported Storage

3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics :

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

AMD Athlon with Radeon Vega Graphics Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors :

2 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

AMD B450 chipset :

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

Audio: 3 x Audio jack(s)

Internal I/O Ports

2 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (2 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x COM port header

1 x Speaker connector

Warranty Information

Warranty: No
