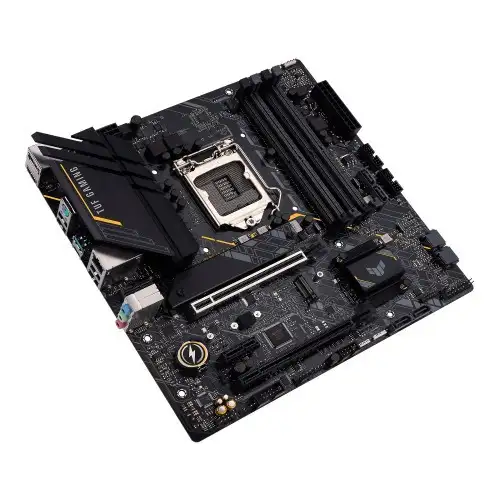

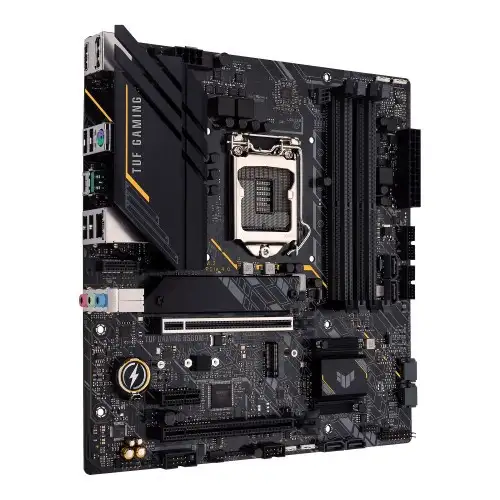

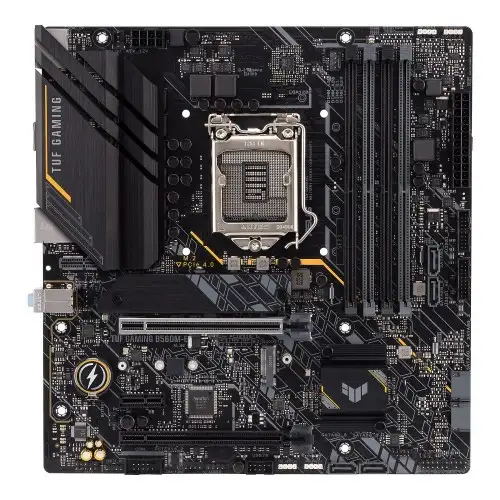

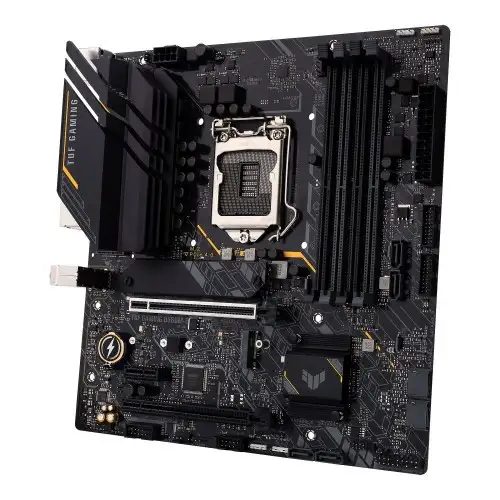

ASUS TUF GAMING B560M-E 10th and 11th Gen mATX Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳17 200 /1

Cpu Socket:
Supported Ram BUS Speed:
Motherboard Manufacturer:
Motherboard Form Factor:
Motherboard Memory Technology:
Number of RAM Slots:
Stock:
Product Condition:
Quantity:
(In Stock)

Total Price:

Phone  :  +8801992298693, +8801891965674
Email  :  info@systembuilder.com.bd
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:

Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset: B560
Form Factor: microATX, 24.4cm x 23.4cm
Audio
ALC887/897
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI: Intel 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel10th Gen processors support PCIe 3.0 x16
Intel B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
1 x PCIe 3.0 x1 slots
M.2 Socket: M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type: Dual Channel Memory Architecture
Slots: 4 x DIMM, DDR4
Supported Memory: 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory: Max. 128GB
Graphics
1 x DP1.4**
* Graphics specifications may vary between CPU types.
** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
*** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz.

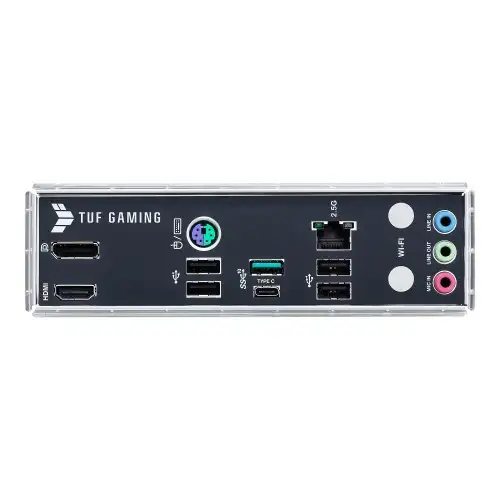

Connector & Ports
1 x HDMI port
1 x DisplayPort
Rear USB:Total 6 ports
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module
V-M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
Supported Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
TPM (Trusted Platform Module )
    N/A
Manufacturing Warranty: 03 Years Warranty
