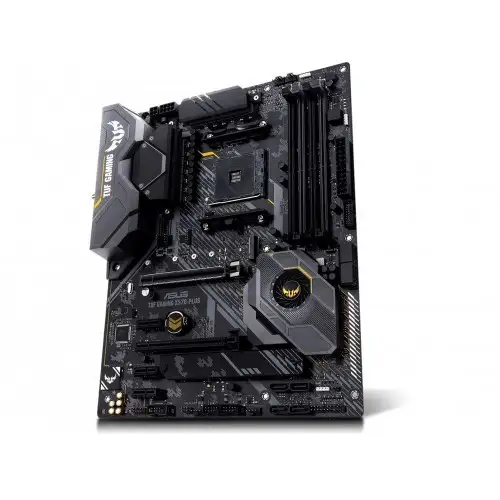

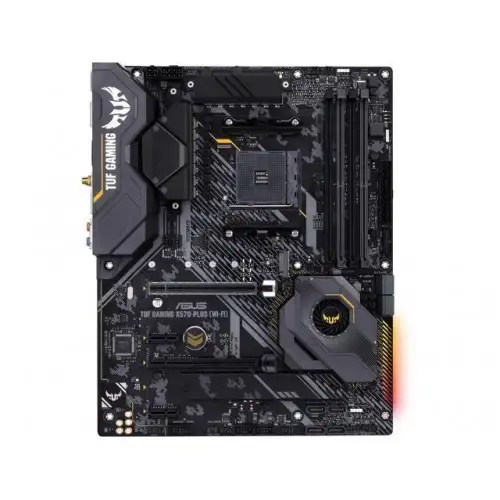

Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard (Used)

Basic Information

Supported CPU: Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors

Chipset: AMD X570

BIOS: 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Form Factor: ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Expansion Slots:

3rd Gen AMD Ryzen Processors : 1 x PCIe 4.0 x16 (x16 mode)

2nd Gen AMD Ryzen Processors : 1 x PCIe 3.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0/2.0 x16 (x8 mode)

AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) ,2 x PCIe 4.0 x1

M.2 Socket: Yes

Memory Type

3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C) /3466(O.C.) / 3400(O.C. /3200(O.C.) / 3000(O.C.) / 2933(O.C.) /2800(O.C.) / 2666/ 2400/ 2133 MHz Un-buffered Memory

2nd Gen AMD Ryzen Processor : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.)/ 3000(O.C.) / 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory

2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/ 3000(O.C.) / 2933(O.C.) / 2800(O.C.)/2666/ 2400/ 2133 MHz Un-buffered Memory

Dual Channel Memory Architecture: ECC Memory (ECC mode) support varies by CPU.

Maximum Memory: 128GB, DDR4

Graphics

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

Multi-VGA output support : HDMI/DisplayPort ports

- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz

- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz

Max Shared Memory: Max. 128GB

Connector & Ports

HDMI: Yes ( 1.4b )

Display Port (s): Yes

3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, )

AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM)

AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board)

AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)

LAN Port (s): Yes ( RJ45 )

Supported Storage

3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

2nd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

8 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

Audio

Realtek ALC S1200A 8-Channel High Definition Audio CODEC

Internal I/O Ports

2 x Aura RGB Strip Header(s)

1 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

8 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x COM port header

1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

TPM (Trusted Platform Module )

1 x SPI TPM header

Warranty: 3 Month
