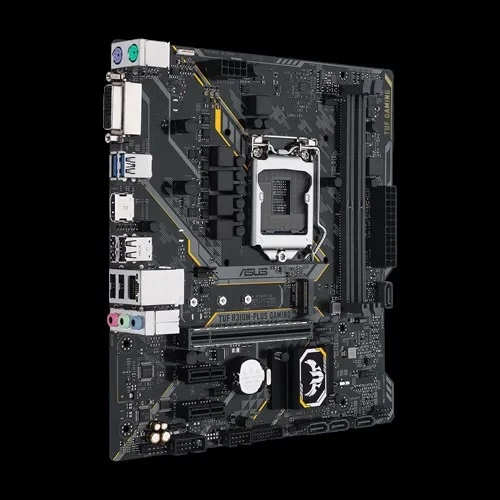

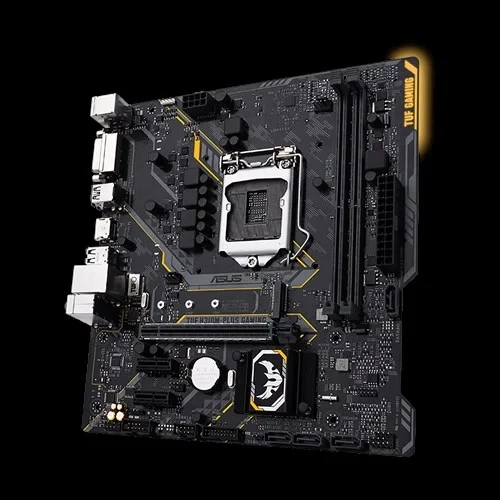

Asus TUF H310M PLUS GAMING 8th Gen mATX Motherboard (Used)

Specification

Basic Information

Supported CPU

Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Chipset : Intel® H310

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search

Form Factor

Micro ATX Form Factor

8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )

Expansion Slots

PCI

Intel® H310 Chipset

1 x PCIe 3.0/2.0 x16 (x16 mode)

2 x PCIe 2.0 x1

M.2 Socket

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)

Memory Type

2 x DIMM

Slots

DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Supported Memory

DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Maximum Memory : 32GB

Graphics

Multi-VGA output support : HDMI/DVI-D ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Max Shared Memory

1024 MB

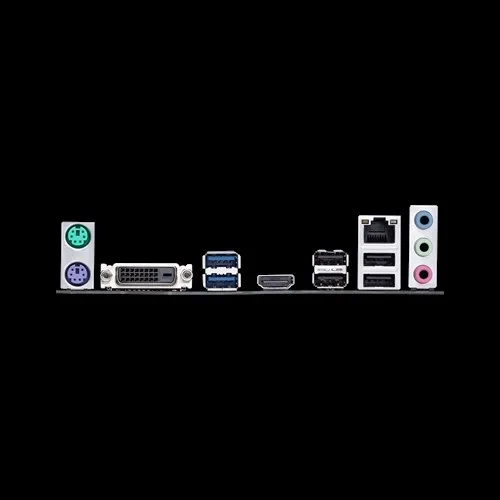

Connector & Ports

1 x HDMI

DVI-D (s)

1 X DVI-D

USB (s)

Intel® H310 Chipset :

4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)

Intel® H310 Chipset :

6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)

LAN Port (s)

Intel® I219V, 1 x Gigabit LAN Controller(s)

TUF LANGuard

Supported Storage

Intel® H310 Chipset :

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)*1

4 x SATA 6Gb/s port(s),

Audio

Realtek® ALC887 7.1-Channel High Definition Audio CODEC *2

Audio Feature :

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Internal I/O Ports

1 x RGB Header(s)

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 3

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x Speaker connector

Warranty Information

1 Month
