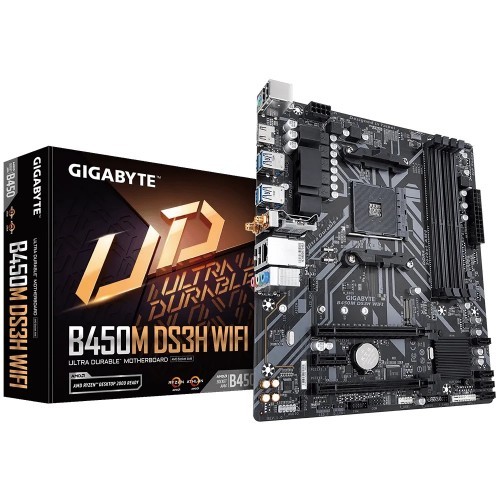

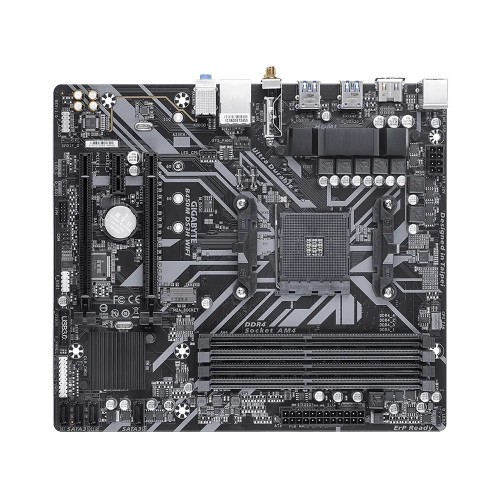

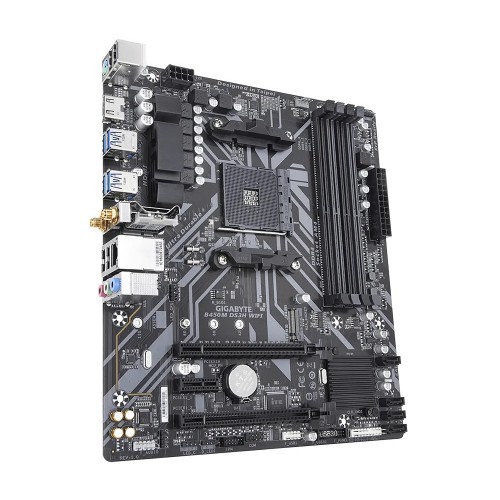

GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard

 Specification
Basic Information

Supported CPU

• AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
• (Please refer "CPU Support List" for more information.)

Chipset

• AMD B450

BIOS

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Form Factor
• Micro ATX Form Factor; 24.4cm x 21.5cm

Expansion Slots

PCI

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
• For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
• 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
• 1 x PCI Express x1 slot
• (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)

M.2 Socket

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
• Actual support may vary by CPU.
• Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU.
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, and RAID 10
• Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.

Memory

Type

• Dual channel memory architecture

Slots

• 4 x DDR4 DIMM sockets

Supported Memory

• Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)

Maximum Memory

• 128 GB

Graphics

Graphics

• Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon

Connector & Ports

HDMI

• 1 x HDMI port

USB (s)

• CPU:
• 4 x USB 3.1 Gen 1 ports on the back panel
• Chipset:
• 2 x USB 3.1 Gen 1 ports available through the internal USB header
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)

• Realtek GbE LAN chip (10/100/1000 Mbit)
• Wireless Communication module
• Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 4.2
• Support for 11ac wireless standard and up to 433 Mbps data rate
• Actual data rate may vary depending on environment and equipment.

Supported Storage

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
• Actual support may vary by CPU.
• Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU.
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, and RAID 10
• Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.

Audio

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• Support for S/PDIF Out

Internal I/O Ports

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x CPU cooler LED strip/RGB LED strip header
• 1 x RGB LED strip header
• 2 x addressable LED strip headers
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

TPM (Trusted Platform Module )

• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Others

Special Features

• Support for APP Center
• Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash
• Support for Xpress Install
• Bundled Software
• Norton Internet Security (OEM version)
• cFosSpeed

Warranty Information

Manufacturing Warranty

• 03 years
