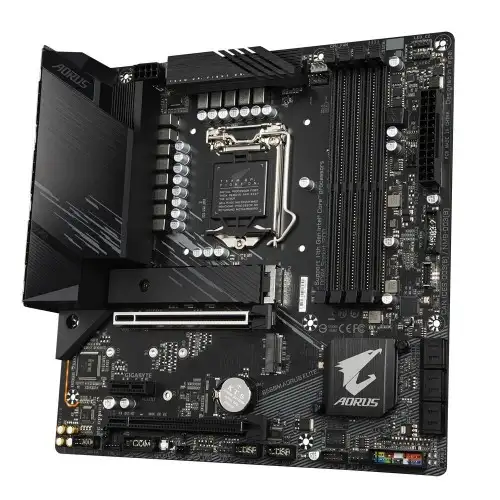

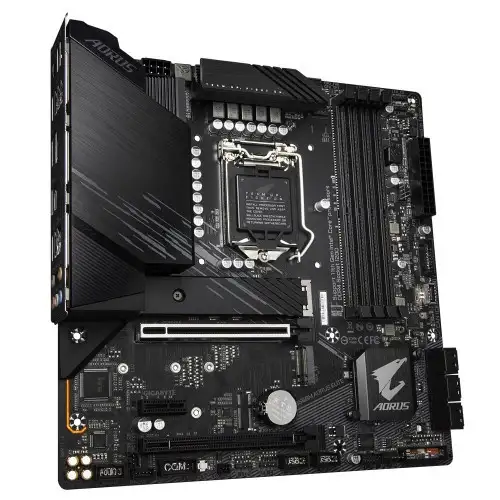

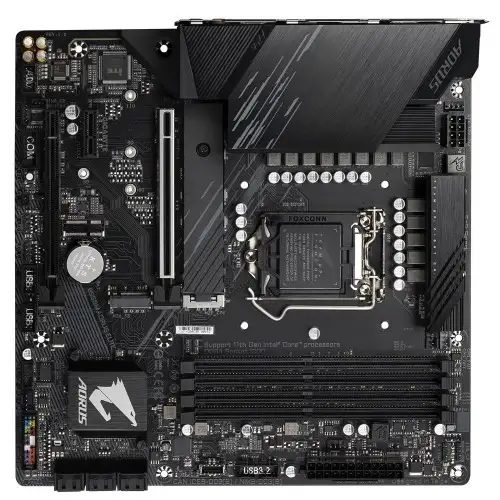

Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard (Used)

(0 reviews)

Sold by:
Inhouse product

Price:
৳11 000 /1

Cpu Socket:
Supported Ram BUS Speed:
Number of RAM Slots:
Motherboard Manufacturer:
Motherboard Form Factor:
Motherboard Memory Technology:
Stock:
Product Condition:
Quantity:

Total Price:

Phone  :  +8801891965674
Email  :  info@systembuilder.com.bd
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:

Basic Information

Supported CPU: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors

* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.

Chipset: Intel B560 Express Chipset

Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm

Audio

Realtek Audio codec

High Definition Audio

2/4/5.1/7.1-channel

Expansion Slots

PCI: 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

*Supported by 11th Generation processors only.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x1 slot

(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

M.2 Socket

2 x M.2 Socket 3 connectors

Memory

Type: Dual channel memory architecture

Slots: 4 x DDR4 DIMM

Supported Memory: 11th Generation Intel Core i9/i7/i5 processors:

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

10th Generation Intel Core i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i5/i3 /Pentium/Celeron processors:

Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory: 128 GB

Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version, HDCP 2.3

Connector & Ports

HDMI

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Display Port (s)

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

USB (s)

Chipset:

1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support

1 x USB 3.2 Gen2 Type-A ports (red) on the back panel

3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header

2 x USB 3.2 Gen1 ports available through the internal USB header

Chipset+ 2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

LAN Port (s)

Realtek2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Audio

6 x audio jacks

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt add-in card connectors

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Manufacturing Warranty: 1 year
