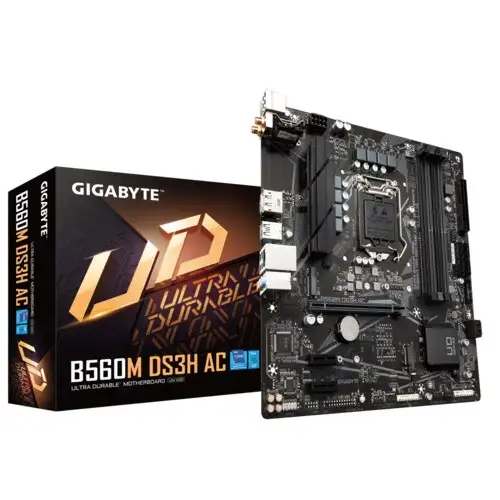

Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳14 300 /1

Cpu Socket:
Supported Ram BUS Speed:
Number of RAM Slots:
Motherboard Manufacturer:
Motherboard Form Factor:
Motherboard Memory Technology:
Product Condition:
Quantity:

Total Price:

Phone  :  +8801891965674
Email  :  info@systembuilder.com.bd
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:

Basic Information

Supported CPU: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors

Chipset: Intel B560 Express Chipset

Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Expansion Slots

PCI: 1 x PCI Express x16 slot, running at x16

(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)

2 x PCI Express x1 slots

(The PCIEX1 slot conforms to PCI Express 3.0 standard.)

M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)

Memory

Type: Dual-channel memory architecture

Slots: 4 x DDR4 DIMM

Supported Memory: 11th Generation Intel Core i9/i7/i5 processors:

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz

10th Generation Intel Core i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i5/i3/Pentium/Celeron processors:

Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual-channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory: 128 GB (32 GB single DIMM capacity)

Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

* When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Connector & Ports

HDMI

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Display Port (s)

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

D-Sub (s)

Yes

USB (s)

Chipset:

1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

2 x USB 2.0/1.1 ports on the back panel

LAN Port (s)

Realtek GbE LAN chip (1000/100 Mbit)

Supported Storage

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)

6 x SATA 6Gb/s connectors

Intel Optane Memory Ready

Audio

3 x audio jacks

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

1 x Q-Flash Plus button

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Manufacturing Warranty: 3 years
