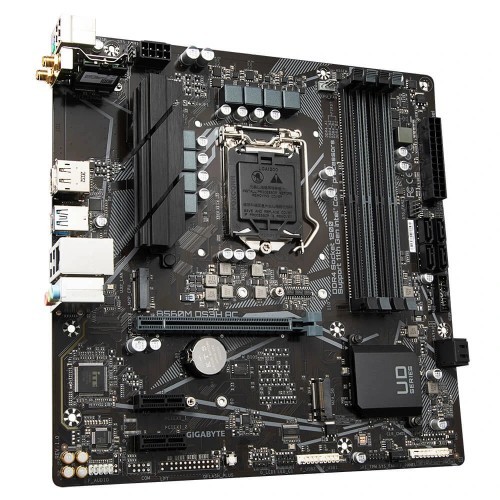

GIGABYTE B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard (Used)

(0 reviews)

Sold by:
Inhouse product

Price:
৳8 000 /pc

Cpu Socket:
Supported Ram BUS Speed:
Motherboard Manufacturer:
Memory Type:
Product Condition:
Number of RAM Slots:
Quantity:
(0 available)

Total Price:

Phone  :  +8801891965674
Email  :  info@systembuilder.com.bd
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:

Specification

Basic Information
Supported CPU11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
ChipsetIntel B560 Express Chipset
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
2 x PCI Express x1 slots
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
Memory
TypeDual-channel memory architecture
Slots4 x DDR4 DIMM
Supported Memory11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory128 GB (32 GB single DIMM capacity)
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
* When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Display Port (s)1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
D-Sub (s)Yes
USB (s)Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
2 x USB 2.0/1.1 ports on the back panel
LAN Port (s)Realtek GbE LAN chip (1000/100 Mbit)
Supported Storage1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
Intel Optane Memory Ready
Audio3 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special FeaturesSupport for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled SoftwareNorton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
