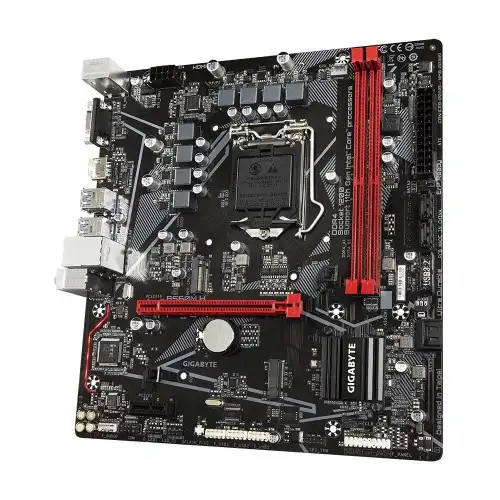

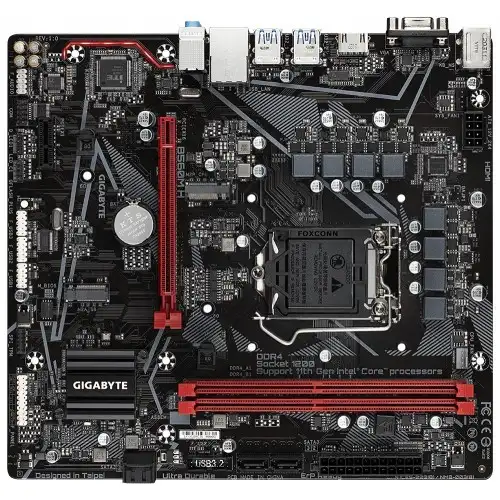

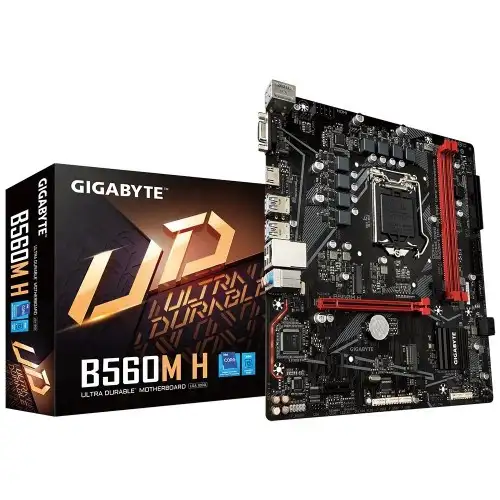

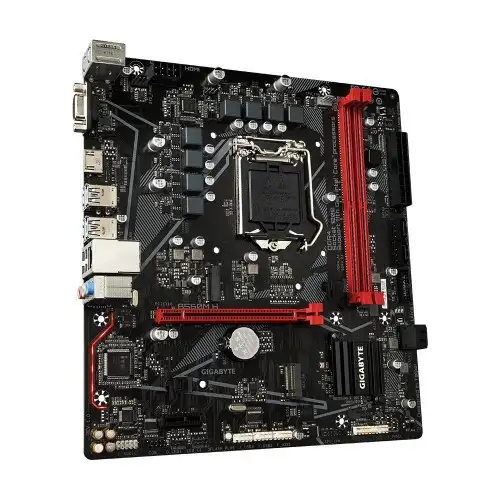

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

Basic Information

Supported CPU: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors

Chipset: Intel B560 Express Chipset

Form Factor: Micro ATX Form Factor; 24.4cm x 22.5cm

Expansion Slots

PCI: 1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)

1 x PCI Express x1 slot (PCIEX1)

(The PCIEX1 slot conforms to PCI Express 3.0 standard.)

M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)

1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

Memory

Type: DDR4

Slots: 2 x DIMM

Supported Memory: 11th Generation Intel Core i9/ i7/ i5 processors:

Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules

10th Generation Intel Core i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors:

Support for DDR4 2666/2400/2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory: 64 GB (32 GB single DIMM capacity)

Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz

1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

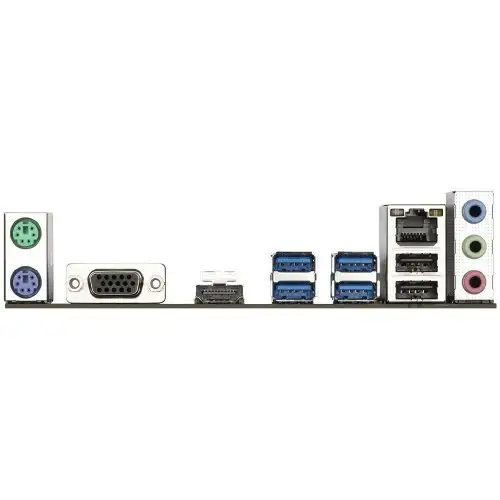

Connector & Ports

1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz

1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset + USB 2.0 Hub:

8 x USB 2.0/ 1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)

LAN Port (s)

Realtek GbE LAN chip (1 Gbit/100 Mbit)

Supported Storage

CPU:

1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)

4 x SATA 6Gb/s connectors

Intel Optane Memory Ready

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

3 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Manufacturing Warranty: 3 year
