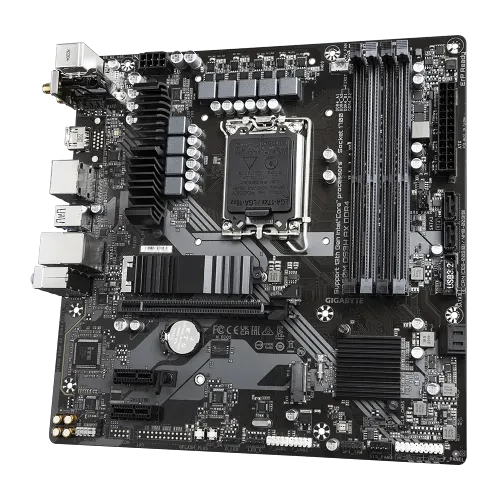

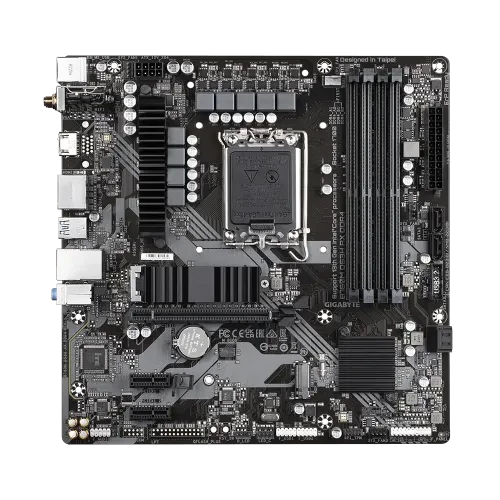

GIGABYTE B760M DS3H AX DDR4 13th and 12th Gen Intel mATX Motherboard

Specification
Basic Information

Supported CPU

• LGA1700 socket: Support for the 13th and 12th Generation Intel Core,
• Pentium Gold and Celeron Processors
• L3 cache varies with the CPU

Chipset

• Intel B760 Express Chipset

BIOS

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

• Micro ATX Form Factor; 24.4cm x 24.4cm

Audio

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Expansion Slots

PCI

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

M.2 Socket

• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors

Memory

Type

• DDR4

Slots

• 4

Supported Memory

• Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

• 128GB

Graphics

Graphics

• Integrated Graphics Processor-Intel HD Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Connector & Ports

HDMI

• 1x HDMI

Display Port (s)

• 1x DisplayPort

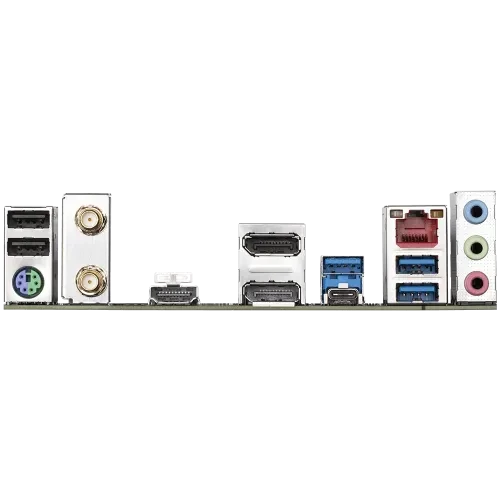

USB (s)

• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel
• 4 x USB 2.0/1.1 ports available through the internal USB headers
• LAN Port (s)
• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• 1 x RJ-45 port
• Wireless Communication module
• Intel Wi-Fi 6E AX211
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• Supported Storage
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Audio

• 1 x front panel audio header
• 3 x audio jacks

Internal I/O Ports

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x S/PDIF Out header
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumpe

TPM (Trusted Platform Module )

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features

• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• iTE I/O Controller Chip
• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus

Warranty Information

Manufacturing Warranty

• 3 years
