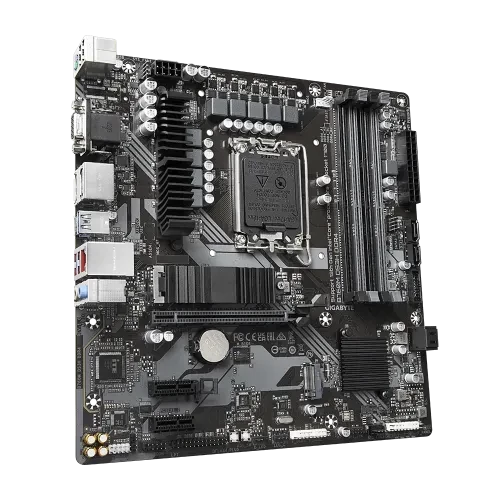

GIGABYTE B760M DS3H DDR4 13th and 12th Gen Intel mATX Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳15 900 /1

Cpu Socket:
Memory Type:
Motherboard Manufacturer:
Number of RAM Slots:
Supported Ram BUS Speed:
Product Condition:
Quantity:
(In Stock)

Total Price:

Phone  :  +8801891965674
Email  :  info@systembuilder.com.bd
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:
Specification
Basic Information

Supported CPU

  • LGA1700 socket: Support for the 13th and 12th Generation Intel Core,
  • Pentium Gold and Celeron Processors
  • L3 cache varies with the CPU

Chipset

  • Intel B760 Express Chipset

BIOS

  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

  • Micro ATX Form Factor; 24.4cm x 24.4cm

Audio

  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
Expansion Slots

PCI

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

M.2 Socket

  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors
Memory
  • Type

DDR4

  • Slots
  • 4

Supported Memory

  • Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

  • 128GB
Graphics

Graphics

  • Integrated Graphics Processor-Intel HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

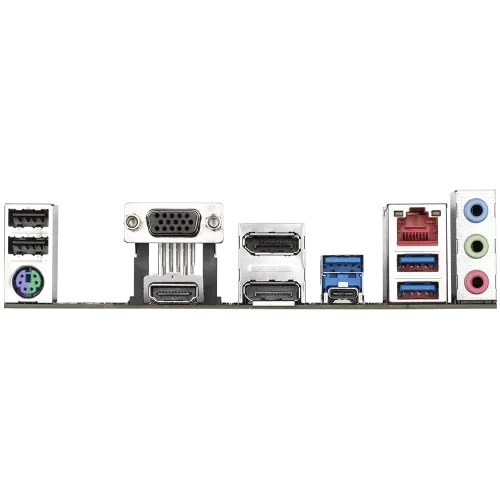

Connector & Ports

HDMI

  • 1x HDMI

Display Port (s)

  • 1x DisplayPort

USB (s)

  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

LAN Port (s)

  • Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • 1 x RJ-45 port

Supported Storage

  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors
  • RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Audio
  • 1 x front panel audio header
  • 3 x audio jacks

Internal I/O Ports

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x S/PDIF Out header
  • 1 x Q-Flash Plus button
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumpe

TPM (Trusted Platform Module )

  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others

Special Features

  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • iTE I/O Controller Chip
  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
Warranty Information

Manufacturing Warranty

  • 3 years
