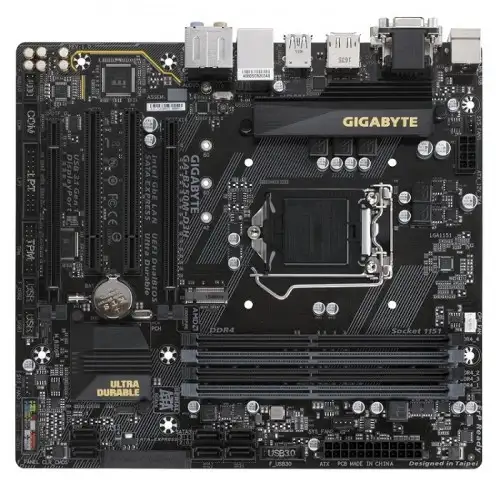

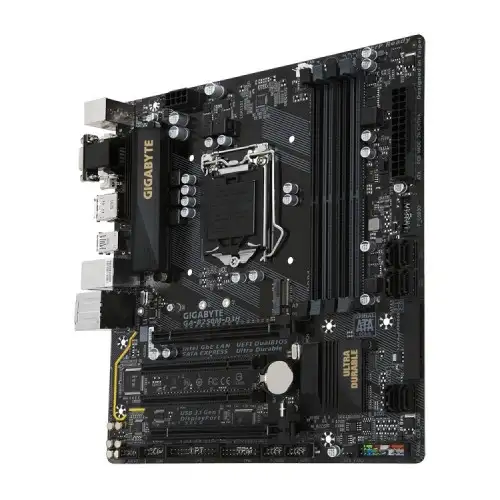

Gigabyte GA-B250M-D3H 7th/ 6th Generation Motherboard (Used)

Motherboard

Chipset: Intel® B250 Express Chipset

Supported Processors: Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

Max Memory: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2400(O.C.)* / 2133 MHz memory modules

* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

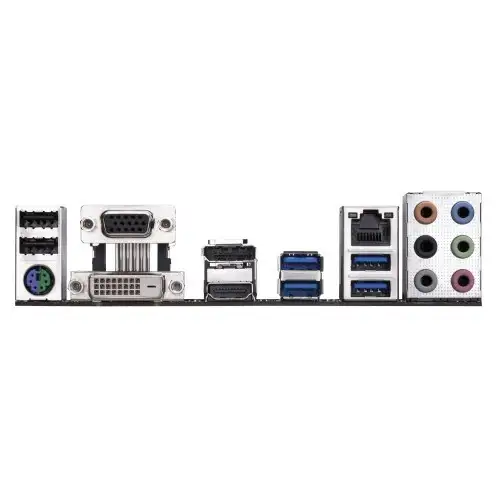

Onboard Video

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version.

1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz

* Support for HDMI 1.4 version.

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB

Onboard Audio: Realtek® ALC892 codec

High Definition Audio: 2/4/5.1/7.1-channel

Support for S/PDIF Out: Onboard LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Warranty Information

Warranty: No Warranty
