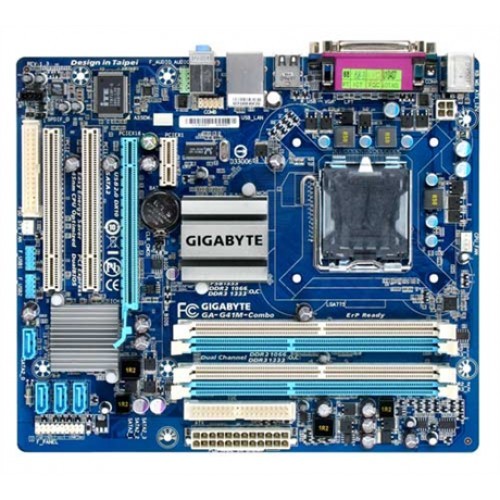

Gigabyte GA-G41M-Combo Motherboard (Used)
(0 reviews)
Sold by:
Inhouse product
Inhouse product
Price:
৳2 300
/1
| Phone | : | +8801891965674 |
| : | info@systembuilder.com.bd | |
| Address | : | Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205 |
Share:
Top Selling Products
Specification
Basic Information
Supported CPU
- Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/ Intel Pentium processor/Intel Celeron processor in the LGA775 package (Go to GIGABYTE's website for the latest CPU support list.)
- L2 cache varies with CPU
Chipset
North Bridge: Intel G41 Chipset
BIOS
- Use of licensed AWARD BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
- Support for BIOS
- Support for Xpress BIOS Rescue
Form Factor
Micro ATX Form Factor; 24.4cm x 21.0cm
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
2 x PCI slots
Memory Type : DDR3, DDR2:
Graphics Max Shared Memory
DDR3:
2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 1333(O.C.)/1066/800 MHz memory modules
DDR2:
2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 1066(O.C.)/800/667 MHz memory modules

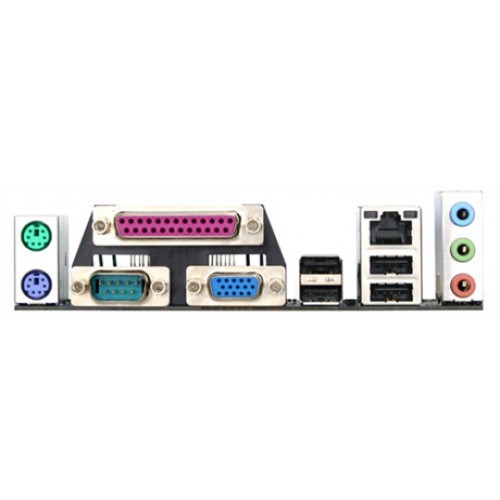

Connector & Ports
D-Sub (s)
1 x D-Sub port
USB (s)
USB 2.0 Ports 4
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
2 x USB 2.0/1.1 headers
4 x USB 2.0/1.1 ports
LAN Port (s)
1 x Atheros AR8151 chip (10/100/1000 Mbit)
Supported Storage
1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718F chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
Audio
High Definition Audio
1 x front panel audio header
3 x audio jacks (Line In/Line Out/Microphone)
Internal I/O Ports
I/O Controller : iTE IT8718F
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper
There have been no reviews for this product yet.
