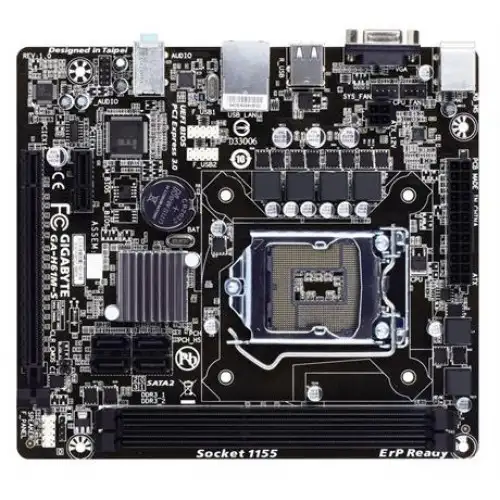

Gigabyte GA-H61M-S DDR3 Micro ATX Motherboard
Inhouse product
| Phone | : | +8801992298693, +8801891965674 |
| : | [email protected] | |
| Address | : | Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205 |
Basic Information
Supported CPU: Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
Chipset: Intel H61 Express Chipset
Form Factor: Micro ATX Form Factor; 19.0cm x 17.0cm
Expansion Slots
PCI: 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
M.2 Socket: No
Memory
Type: Dual channel memory architecture
Slots: 2 x 1.5V DDR3 DIMM sockets
Supported Memory: Support for DDR3 1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory: 16 GB
Graphics
Max Shared Memory: 1 GB

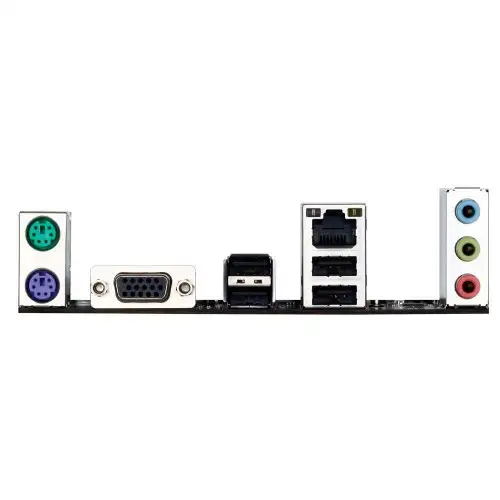

Connector & Ports
HDMI: No
D-Sub (s): 1 x D-Sub port
USB (s): 4 x USB 2.0/1.1 headers
LAN Port (s): 1 x RJ-45 port
Supported Storage: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
Audio: 3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper
Manufacturing Warranty: 03 Years
