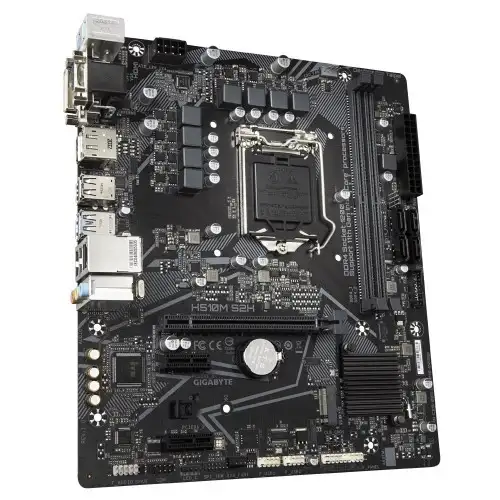

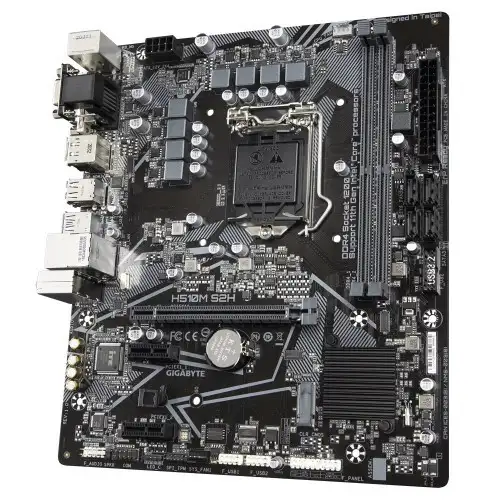

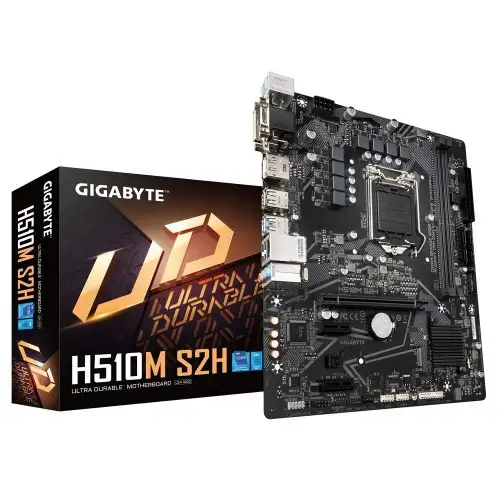

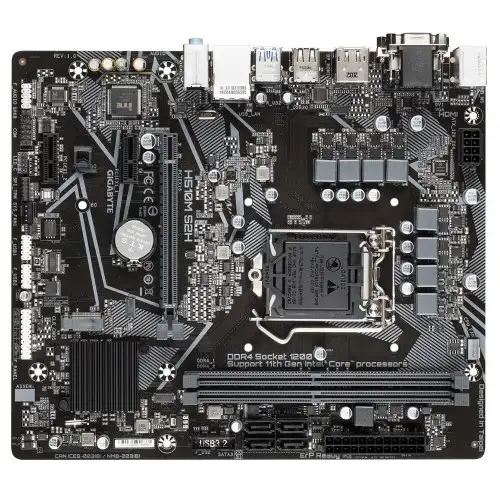

Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard

Basic Information

Supported CPU: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors

* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.

Chipset: Intel H510 Express Chipset

Form Factor: Micro ATX Form Factor; 24.4cm x 21.0cm

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Expansion Slots

PCI: 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)

* Supported by 11th Generation processors only.

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 3.0 standard.)

M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Memory

Type: Dual channel memory architecture

Slots: 2 x DDR4 DIMM

Supported Memory: 11th Generation Intel Core i9/i7/i5 processors:

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i5/i3/Pentium/Celeron processors:

Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory: 64 GB (32 GB single DIMM capacity)

Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

* When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

* When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.

Support for up to 2 displays at the same time

Connector & Ports

1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

1 x D-Sub port

1 x DVI-D port

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)

LAN Port (s)

Realtek GbE LAN chip (1 Gbit/100 Mbit)

Supported Storage

1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

* The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.

4 x SATA 6Gb/s connectors

Audio

3 x audio jacks

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Manufacturing Warranty: 3 years
