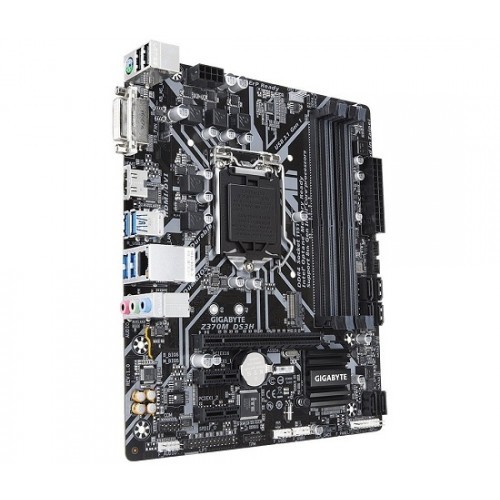

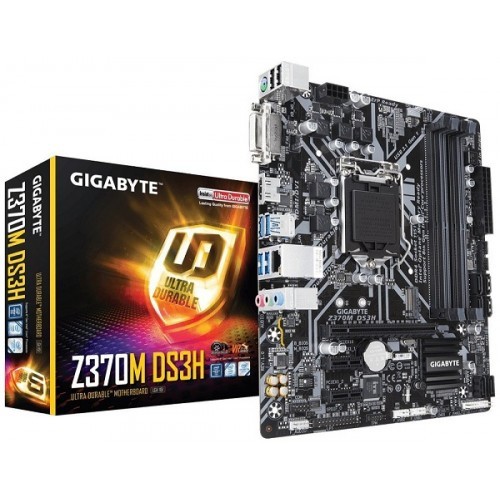

Gigabyte Z370M DS3H Ultra Durable 8th Gen DDR4 Motherboard (Used)

Specification

Basic Information

Supported CPU

Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package

L3 cache varies with CPU

Chipset

Intel® Z370 Express Chipset

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for Dual BIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 22.6cm x 19.3cm

Expansion Slots

PCI

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

Memory Type

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Slots

Dual channel memory architecture

Supported Memory

Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.)

/ 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.)

/ 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

64 GB

Graphics

Graphics

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Max Shared Memory

1GB

Connector & Ports

HDMI

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

USB (s)

6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

LAN Port (s)

Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

Warranty Information

No Warranty
