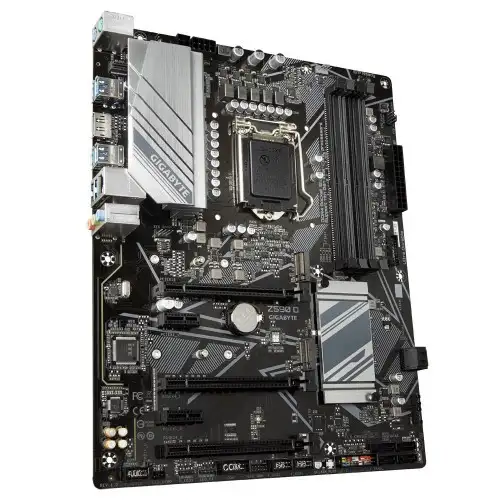

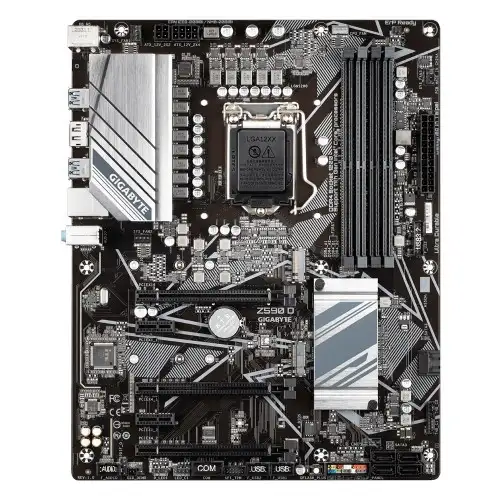

Gigabyte Z590 D 10th and 11th Gen ATX Motherboard

Basic Information

Supported CPU: LGA1200 package:

11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors

Chipset: Intel Z590 Express Chipset

Form Factor: ATX Form Factor; 30.5cm x 24.4cm

Audio

Realtek Audio CODEC

High Definition Audio

2/ 4/ 5.1/ 7.1-channel

Support for S/ PDIF Out

Expansion Slots

PCI: 1 x PCI Express x16 slot, running at x16 (PCIEX16)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)

M.2 Socket

CPU:

1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Supported by Only 11th Gen)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

Memory

Type: DDR4

Slots: 4 x DIMM sockets

Supported Memory: 11th Generation Intel Core i9/ i7/ i5 processors:

Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

10th Generation Intel Core i9/ i7 processors:

Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules

10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors:

Support for DDR4 2666/ 2400/ 2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

128 GB (32 GB single DIMM capacity)

Graphics

Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

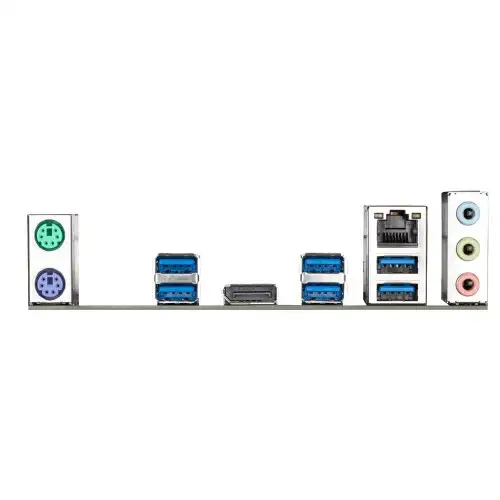

Connector & Ports

Display Port (s)

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

USB (s)

8 x USB 3.2 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports available through the internal USB headers

LAN Port (s)

Realtek GbE LAN chip (1 Gbit/100 Mbit)

Supported Storage

CPU:

1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel Optane Memory Ready

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt add-in card connectors

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Manufacturing Warranty: 3 Years
